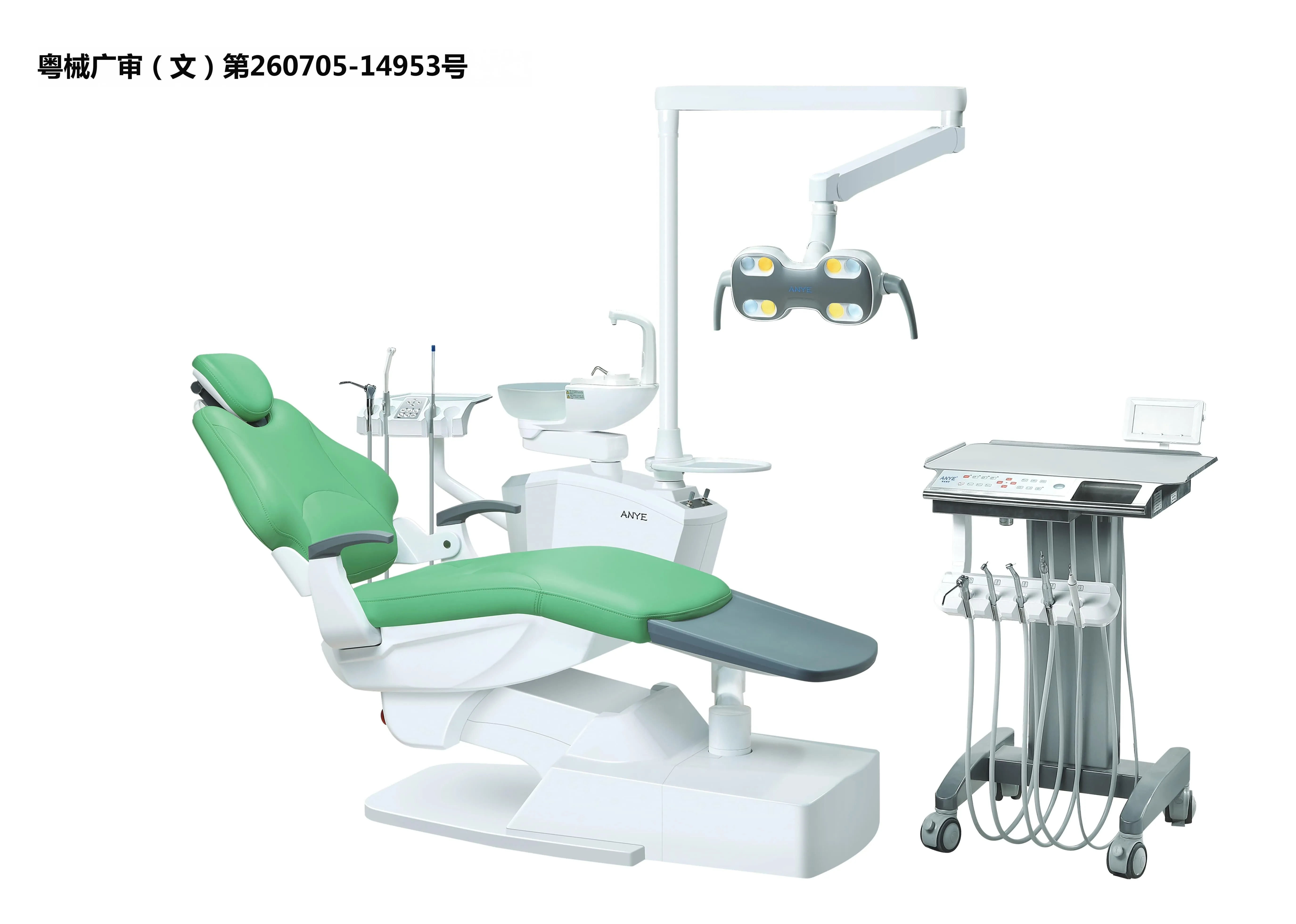

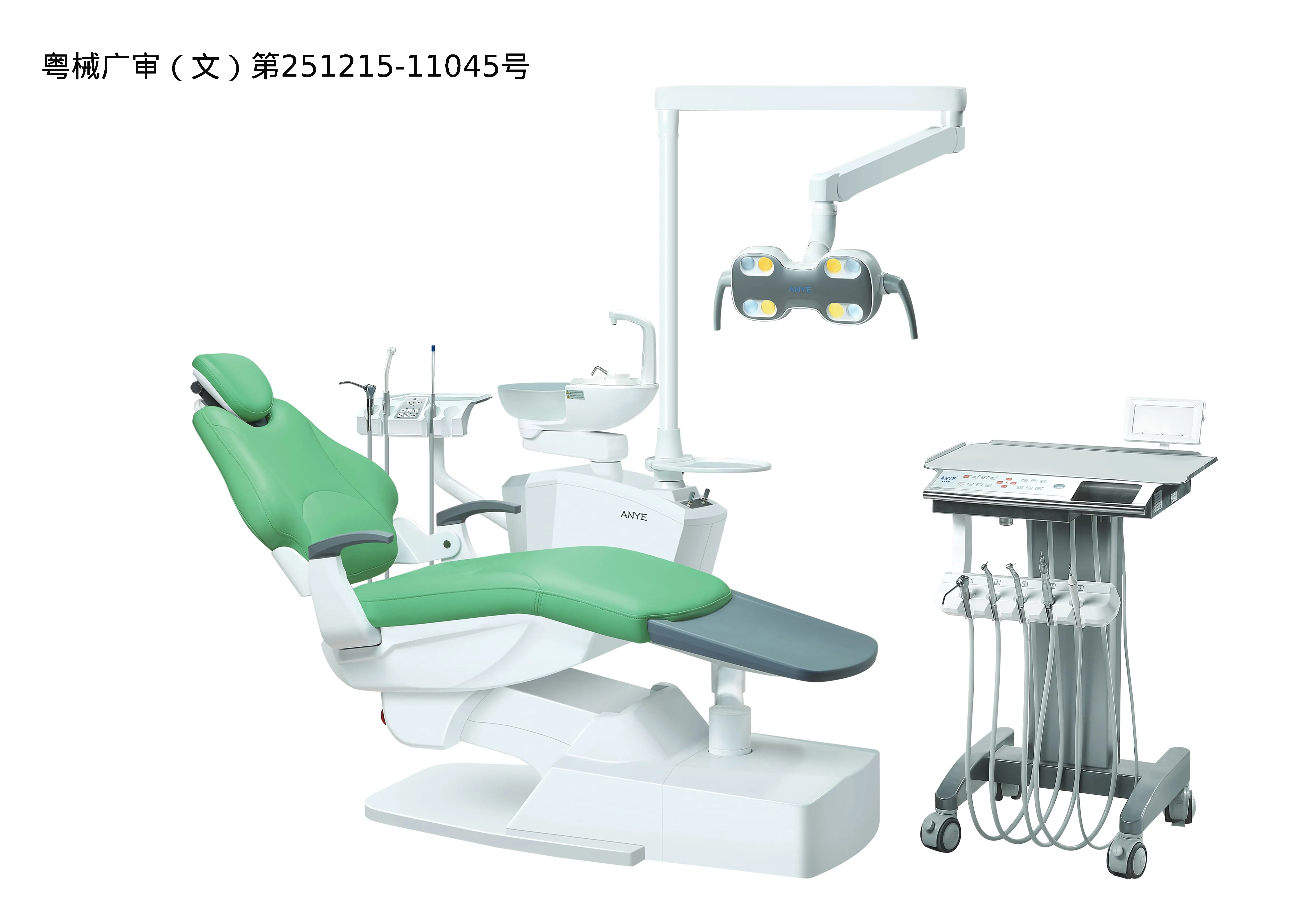

Dental Unit AY-215B2

Dental Unit AY-215B2

The cabinet of AY-215B2 can be rotated 180°. It can easily locate the position needed by the assistant and can be used for planting. The unit has superb craftsmanship and stable, The intimate design can bring comfort to the patients to the greatest extent and is deeply loved by dentist.


B2-1


The cabinet of AY-215B2 can be rotated 180°. It can easily locate the position needed by the assistant and can be used for planting. The unit has superb craftsmanship and stable, The intimate design can bring comfort to the patients to the greatest extent and is deeply loved by dentist.




Purchase parts:


B21

Removable Cabinet


The cabinet of AY-215B2 can be rotated 180°, move in a wide range, its easily to locate the position of the assistant and the humanized design can meet different needs.



B22

Trolly Instrument tray


It is flexible to move, the handpiece rack can be rotated. The trolly handle is made of stainless steel, its convenient for cleaning and disinfection.

LED Operating Light


Philips LED light source, adjustable from 8,000 to 30,000, infrared sensor switch or touch switch to control stepless dimming. Its with manual and sensor integration, flexible  and agile movement, and easy to locate the required angle of lighting.



B24

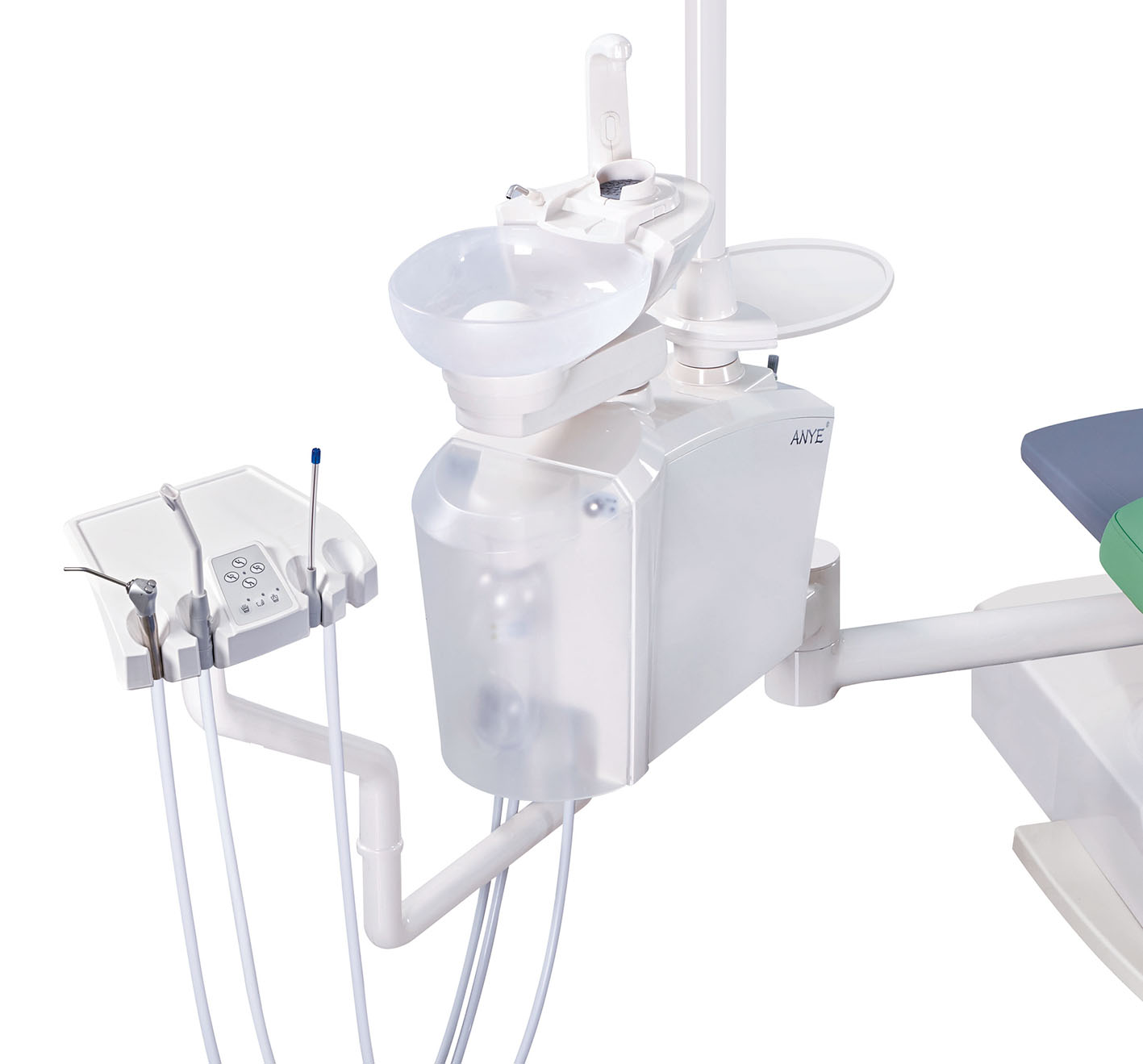

Luxury Detachable Spittoon


The spittoon is detachable for easy cleaning, it can be rotated by 90°for patients to spit.

B25

Dentist Stool C


Dental stool C with 360°mute universal wheel which is flexible to move, cushion lifting, backrest pitching. Its provides the dentist with good support for the haunch and waist.



B26

Glass Plate


The rotatable plate can hold keys, mobile phones, mirrors, tissues and others.



B27

Comfortable Headrest


The adjustable curved headrest is more comfortable than the traditional flat headrest, its prevents the head from shaking and can be adjusted from multiple angles.



B28

Environmental Leather


The cushion is made of environmental leather,its more soft, strong air permeability and durable wear without fading.



B29

Flushing and Water Supply


The water supply nozzle is 2cm higher than the surface of the spittoon cylinder to avoid cross infection caused by water splashing to the water supply nozzle during sputum flushing.



B210

Instrument tray


Main Control Board
-With Electric dental chair control system
-With 14 control buttons
-9 memories
-One button preset working position which greatly improves the dentist's work efficiency.



B211

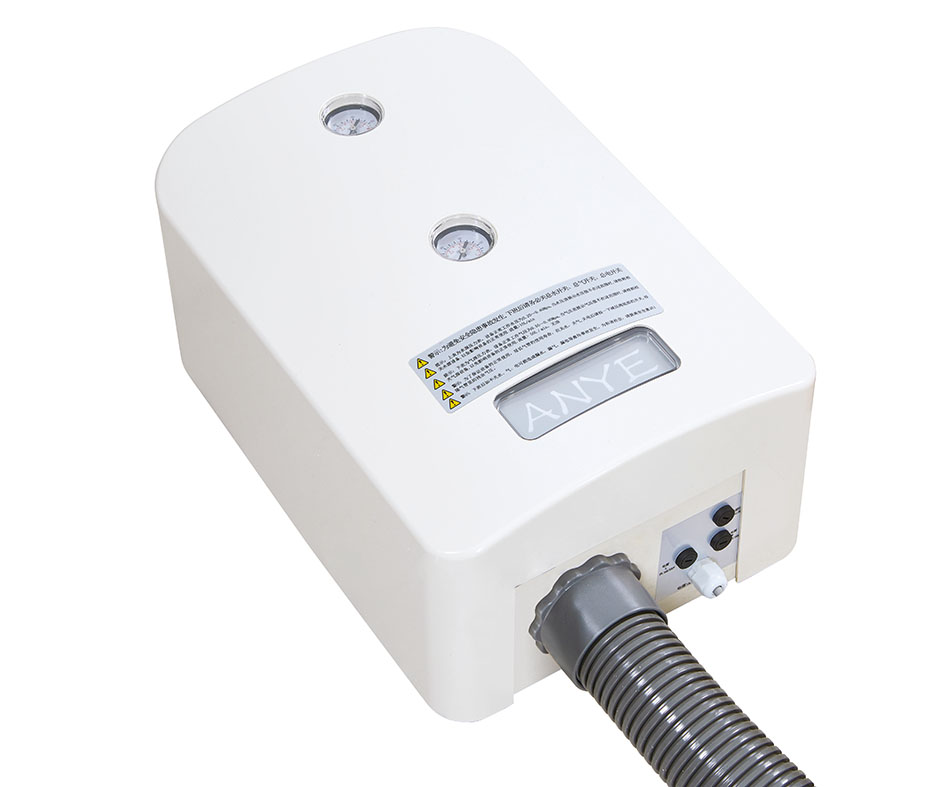

Junction Box


Enclosed power design, according to European safety standards, moisture-proof, dustproof and prevent electromagnetic interference. Its improve the stability and durability of the prower.
With main switch of water, electric and air, the barometer is on the top of the junction box which is convenient for observing the water and air status of the whole machine.

140x140


Multifunctional Foot Pedal


The pedals have self-lock function and equipped with control of rise and down, backrest forward and backward, blowing, flushing and water supply, operating lamp on/off and handpiece control.


140x140

Cast aluminum lamp holder


Cast aluminum lamp holder, high flexibility, long service life (after 100,000 fatigue tests).



Key parts:

4mm high quality steel is cut by laser cutting machine

4mm High Quality Steel Is Cut By Laser Cutting Machine

All ABS Plastic by Injection Moulding

All ABS Plastic By Injection Moulding

import medical water & air tube

Import Medical Water & Air Tube


Import member and valve

Import Member And Valve

import motor

Import Motor

Import Pressure Reducing Valve

Import Pressure Reducing Valve

import Solenoid Valve

Import Solenoid Valve

Power Supply With Protection System

Power Supply With Protection System

Self-designed PCB System, Import Chip

Self-designed PCB System, Import Chip

Technical Parameters:


Power Voltage 220V-50HZ/60HZ
Motor Voltage 24V
Air Pressure 0.5MPa-0.8MPa
Water Pressure 0.2MPa-0.4MPa


LED Light:


Rated input voltage AC 24V±10%
Maximum power 25VA
Light Source 4 white light-emitting diodes (LED)
Color Temperature 5,000K - 5,700K
Illuminance Adjustable from <8,000 to >30,000


Configutaion:


24V DC Motor
Movable Instrument Tray
3-Way Syringe(Assistant)Cold/Hot Water
Assistant Operating Control System
Water Heater System
Strong Suction Tube
Weak Suction Tube
Emergency Switch(On/Off)
Auto Spittoon Flush And Cup Filler Control System
Detachable 90°Moveble Spittoon
Chair With Self-lock Function
Multifuncitonal Foot Pedal
Keypress Function For Spitting
Control Box With Main Switch(Water/Electric/Air)
4 Eyes LED Operating Light
9 Memories
Dentist stool C
Glass Plate
180°Rotating Cabinet
Glass Spittoon
Synchronized
Third Generation Chair Frame Compensation System
Environment Leather
Water One-way Valve(Anti-backflow Funtion)

Opitons

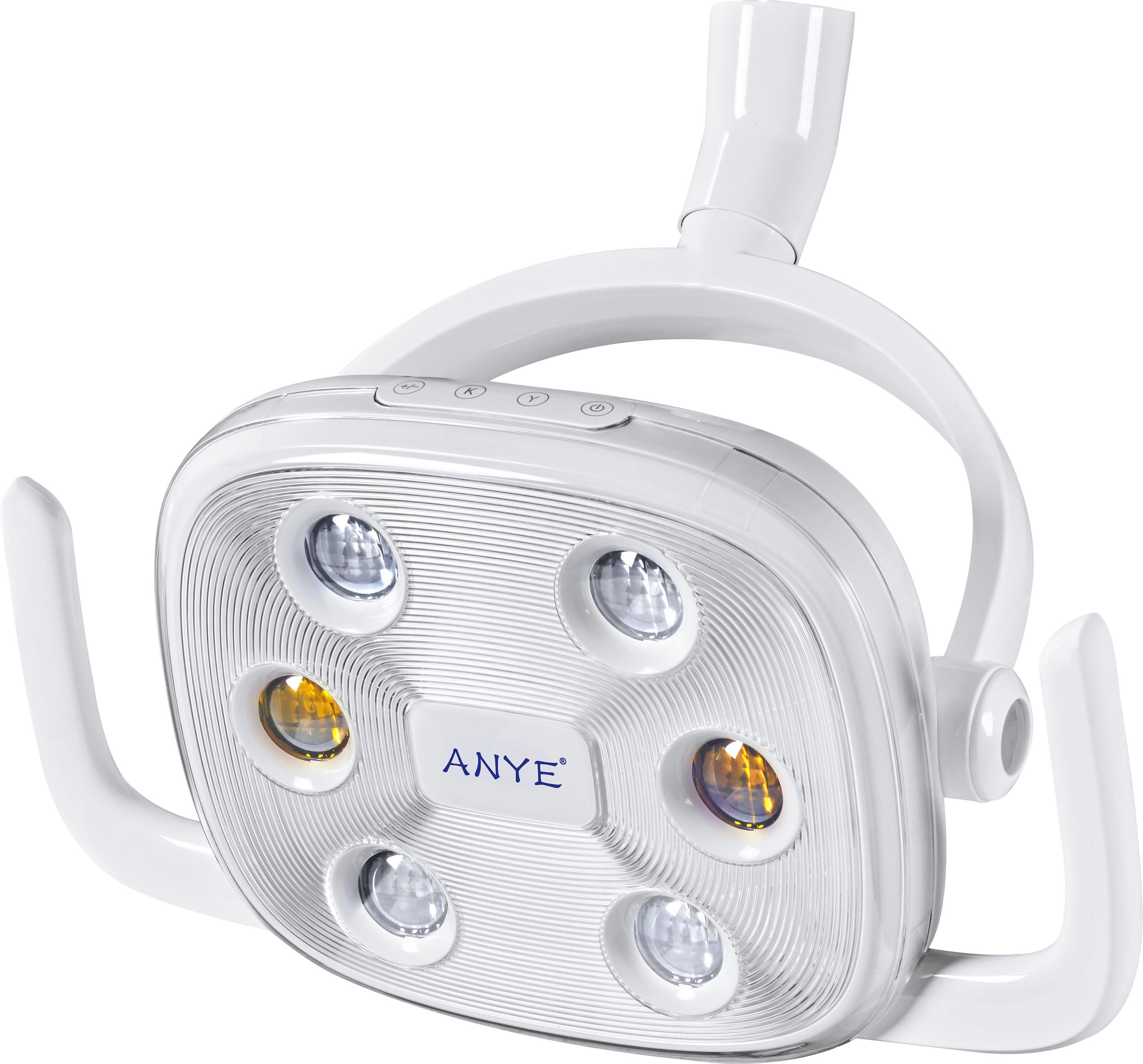

8 Eyes operating light (whiteyellow)

8 Eyes operating light (whiteyellow)

4 Eyes operating light (white)

4 Eyes operating light (white)

lmplant operating light (white)

lmplant operating light (white)

Reflected operating light (whiteyellow)

Reflected operating light (whiteyellow)


Dentist stool C

Dentist stool C

Dentist stool A

Dentist stool A

Luxury Top-mounted instrument tray

Luxury Top-mounted instrument tray

Top-mounted instrument tray

Top-mounted instrument tray


Multifunctional foot pedal

Luxury cast aluminum multifunctional pedal

Foot pedal

Cast aluminum multifunctional pedal

Monitor holder

Cast aluminum peda

Monitor holder



Curing Light

Foot pedal

Curing Light

Monitor holder

Scaler



Colors Available:

Standard: PU

Sky BlueSky Blue
Light BlueLight Blue
Dark BlueDark Blue
Light GrayLight Gray
GreenGreen
Green
YellowYellow
OrangeOrange
Light GrayRose Red
lvorylvory

Optional:  Leather


Eco-friendly leather EmeraldEmerald
Eco-friendly leather Orange RedOrange
Eco-friendly leather Chinese RedChinese Red
Eco-friendly leather Light GreenLight Green
Eco-friendly leather Bark BrownBark Brown
Eco-friendly leather Sapphire BlueSapphire Blue
Eco-friendly leather Dark GreyDark Grey
Eco-friendly leather Amber BrowAmber Brown
Eco-friendly leather Olive GreenOlive Green
Eco-friendly leather Rose RedRose Red
