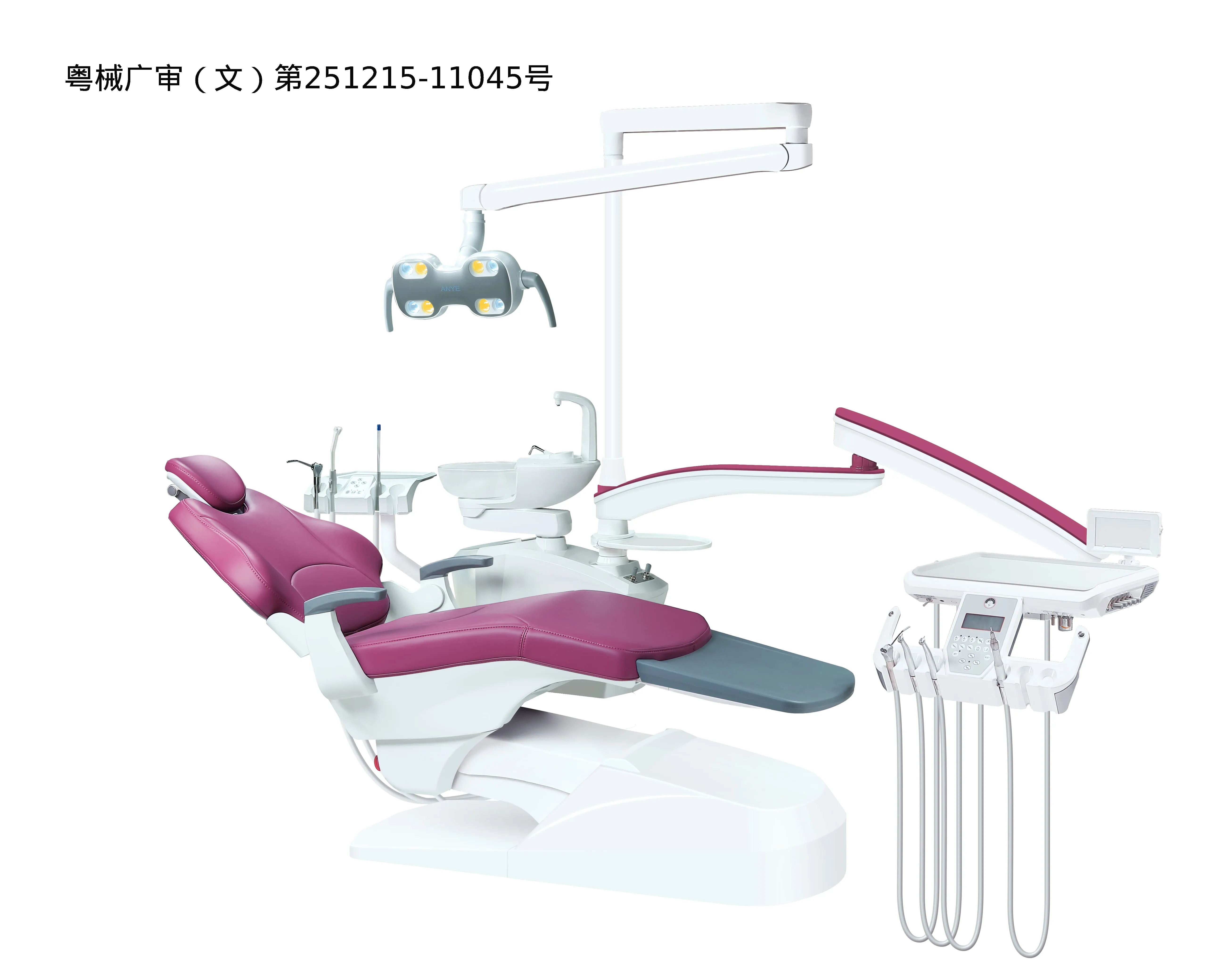

Dental Unit AY-215B3

Dental Unit AY-215B3

AY-215B3 is made of a fourth-generation high-end professional dental unit based on comfort and technology. The product is designed according to market demand to meet the clinical professional needs of medical staff and provide patients with wide and comfortable seats. It is in line with the ergonomic streamline design, can automatically cooperate with the cushion movement to form an elevation angle, and has a stronger sense of back support. The intimate design of AY-215B3 can bring more comfort to patients.


b3-12

CONCEPT OF COMFORTABLE DESIGN

Our design put comfort,safrty and easy using into the first place,never compromise!All our products focus on practicality,functions and aesthetics,which leads the trend of dental industry.





Purchase parts:


B31

Detachable Spittoon


The spittoon is detachable for easy cleaning, it can be rotated by 90°for patients to spit.



B32

Instrument Tray


The bottom shell of the instrument tray is made of cast aluminum which is more solid and stable. There are 9 memories and barometer in front, it is convenient to watch the air pressure of handpiece tube at any time.


LED Operating Light


Philips LED light source, adjustable from 8,000 to 30,000, infrared sensor switch or touch switch to control stepless dimming. Its with manual and sensor integration, flexible  and agile movement, and easy to locate the required angle of lighting.



B34

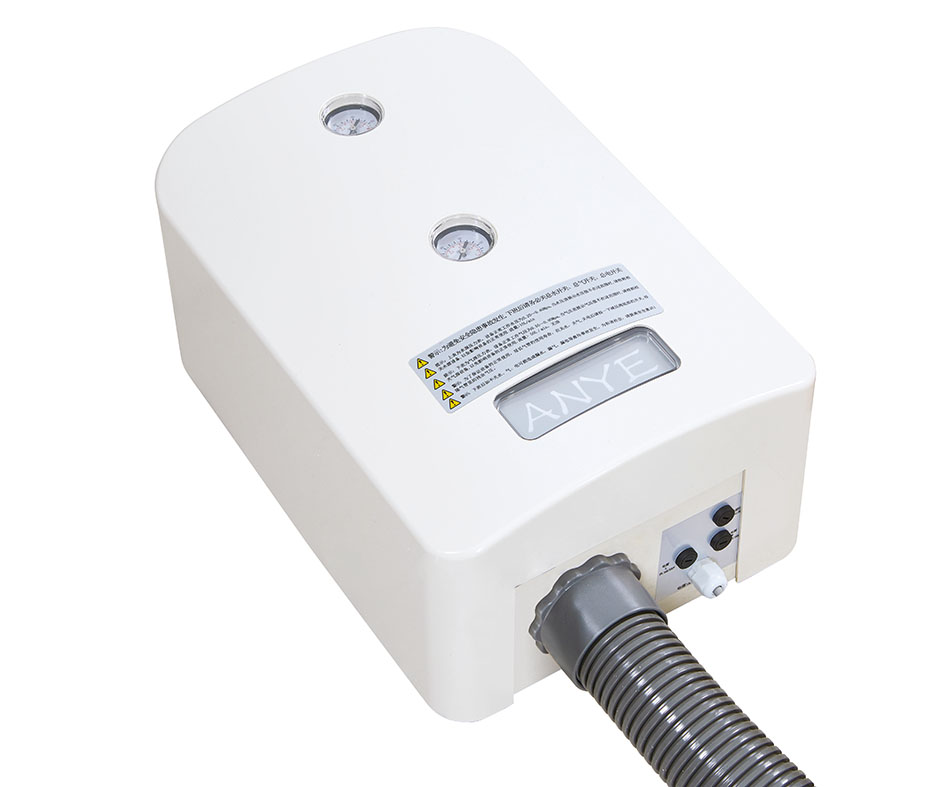

Junction Box


Enclosed power design, according to European safety standards, moisture-proof, dustproof and prevent electromagnetic interference. Its improve the stability and durability of the prower.
With main switch of water, electric and air, the barometer is on the top of the junction box which is convenient for observing the water and air status of the whole machine.


B35

Dentist Stool C


Dental stool C with 360°mute universal wheel which is flexible to move, cushion lifting, backrest pitching. Its provides the dentist with good support for the haunch and waist.



B36

Multifunctional Foot Pedal


The pedals have self-lock function and equipped with control of rise and down, backrest forward and backward, blowing, flushing and water supply, operating lamp on/off and handpiece control.



B37

Luxury Backrest


The backrest inside is made of 4mm steel, outer layer is inlaid with PU material which is luxurious, solid and stable. Its greatly improves the comfort to patient.



B38

Flushing and Water Supply


The water supply nozzle is higher 2cm above surface of the spittoon tank to avoid cross-infection caused by water splashing on the water supply nozzle during  flushing. The water supply seat can be detached for cleaning.



B39

Assistant Control System


With multi-functional control panel, it is convenient for assistant to use the common functions of dental chair and assist dentists to improve work efficiency.



B310

Rotatable Armrest


The armrest can be rotated horizontally which is convenient for patients to lie up and down the chair.



B311

Foot Pad


The Foot pad is made of PU material that the patients do not need to take off their shoes for treatment, which is convenient for cleaning.



B312

Chair Frame


The chair frame is made of 4mm metal cutting by the laser machine. Its with precise dimensions which is the highest standard in the dental unit industry.



B313

Aluminum Cabinet


High strength integral molding, integral casting aluminum, no rust, high hardness, durable, not easy to deformation.



140x140

Cast aluminum lamp holder


Cast aluminum lamp holder, high flexibility, long service life (after 100,000 fatigue tests).






Key parts:

4mm high quality steel is cut by laser cutting machine

4mm High Quality Steel Is Cut By Laser Cutting Machine

All ABS Plastic by Injection Moulding

All ABS Plastic By Injection Moulding

import medical water & air tube

Import Medical Water & Air Tube

Import member and valve

Import Member And Valve

import motor

Import Motor

Import Pressure Reducing Valve

Import Pressure Reducing Valve

import Solenoid Valve

Import Solenoid Valve

Power Supply With Protection System

Power Supply With Protection System

Self-designed PCB System, Import Chip

Self-designed PCB System, Import Chip

Technical Parameters:


Power Voltage 220V-50HZ/60HZ
Motor Voltage 24V
Air Pressure 0.5MPa-0.8MPa
Water Pressure 0.2MPa-0.4MPa


LED Light:


Rated input voltage AC 24V±10%
Maximum power 25VA
Light Source  4 white light-emitting diodes (LED)
Color Temperature 5,000K - 5,700K
Illuminance Adjustable from <8,000 to >30,000


Configutation:


24V DC Motor
Down Mounted Instrument Tray
3-Way Syringe(Assistant)Cold/Hot Water
Assistant Operating Control System
Water Heater System
Strong Suction Tube
Weak Suction Tube
Air Brake Instrument Tray
Emergency Switch(On/Off)
Auto Spittoon Flush And Cup Filler Control System
Detachable 90° Moveble Spittoon
Chair With Self-lock Function
Multifuncitonal Foot Pedal
Keypress Function For Spitting
Control Box With Main Switch(Water/Electric/Air)
4 Eyes LED Operating Light
Liquid Crystal Display
9 Memories
Dentist stool C
45°Rotating Cabinet
Glass Spittoon
Synchronizd
Third Generation Chair Frame Compensation System
Environment Leather
Cast Aluminum Cabinet
Water One-way Valve(Anti-backflow Function)

Opitons

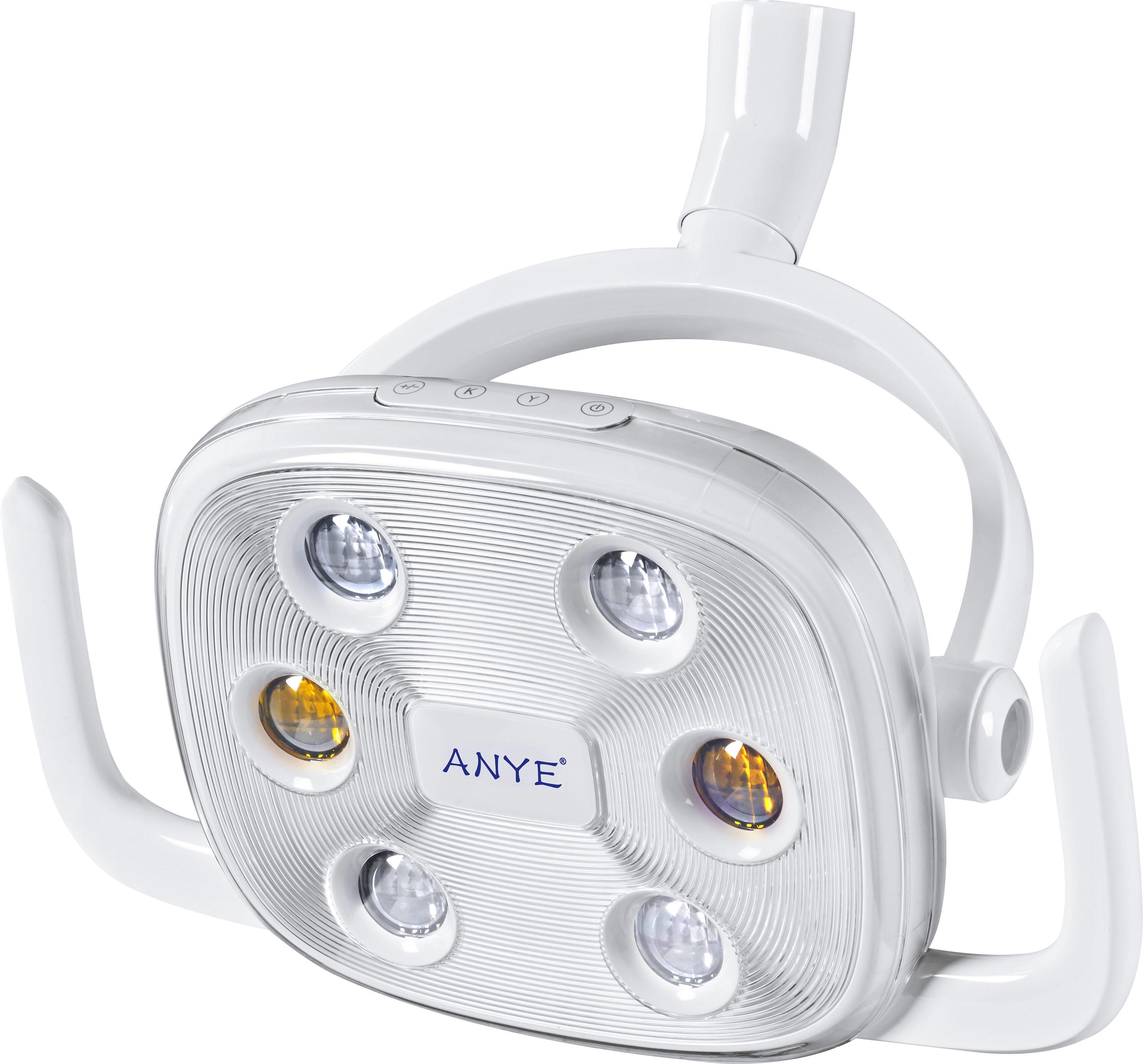

8 Eyes operating light (whiteyellow)

8 Eyes operating light (whiteyellow)

4 Eyes operating light (white)

4 Eyes operating light (white)

lmplant operating light (white)

lmplant operating light (white)

Reflected operating light (whiteyellow)

Reflected operating light (whiteyellow)


Dentist stool C

Dentist stool C

Dentist stool A

Dentist stool A

Luxury Top-mounted instrument tray

Luxury Top-mounted instrument tray

Top-mounted instrument tray

Top-mounted instrument tray


Multifunctional foot pedal

Luxury cast aluminum multifunctional pedal

Foot pedal

Cast aluminum multifunctional pedal

Monitor holder

Cast aluminum peda

Monitor holder



Curing Light

Foot pedal

Curing Light

Monitor holder

Scaler



Colors Available:

Standard: PU

Sky BlueSky Blue
Light BlueLight Blue
Dark BlueDark Blue
Light GrayLight Gray
GreenGreen
Green
YellowYellow
OrangeOrange
Light GrayRose Red
lvorylvory

Optional:  Leather


Eco-friendly leather EmeraldEmerald
Eco-friendly leather Orange RedOrange
Eco-friendly leather Chinese RedChinese Red
Eco-friendly leather Light GreenLight Green
Eco-friendly leather Bark BrownBark Brown
Eco-friendly leather Sapphire BlueSapphire Blue
Eco-friendly leather Dark GreyDark Grey
Eco-friendly leather Amber BrowAmber Brown
Eco-friendly leather Olive GreenOlive Green
Eco-friendly leather Rose RedRose Red
