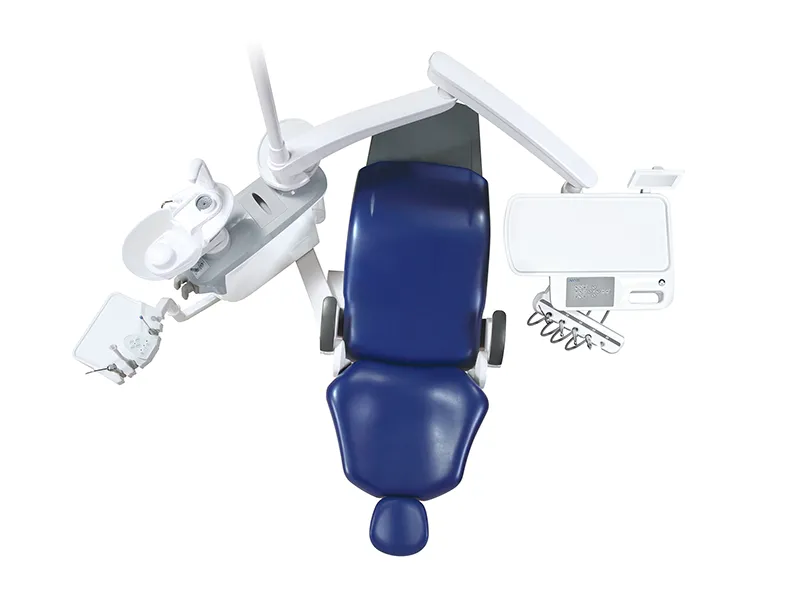

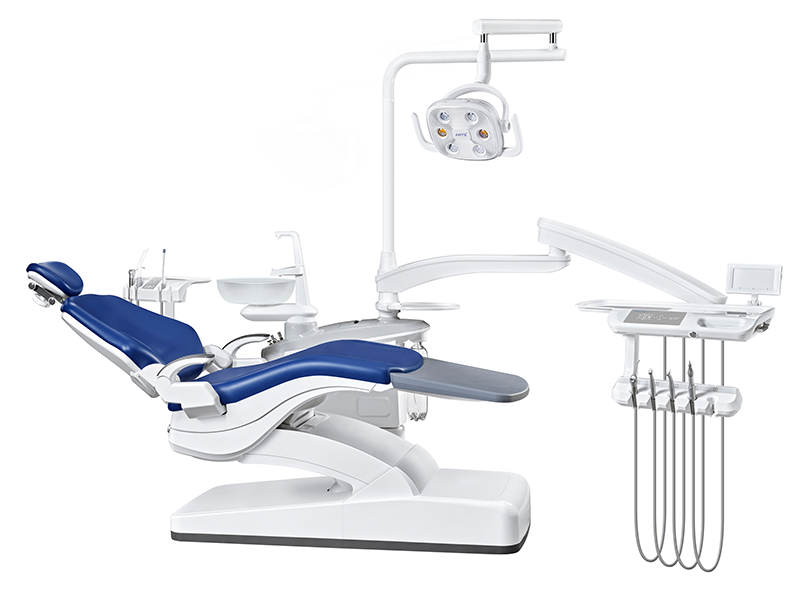

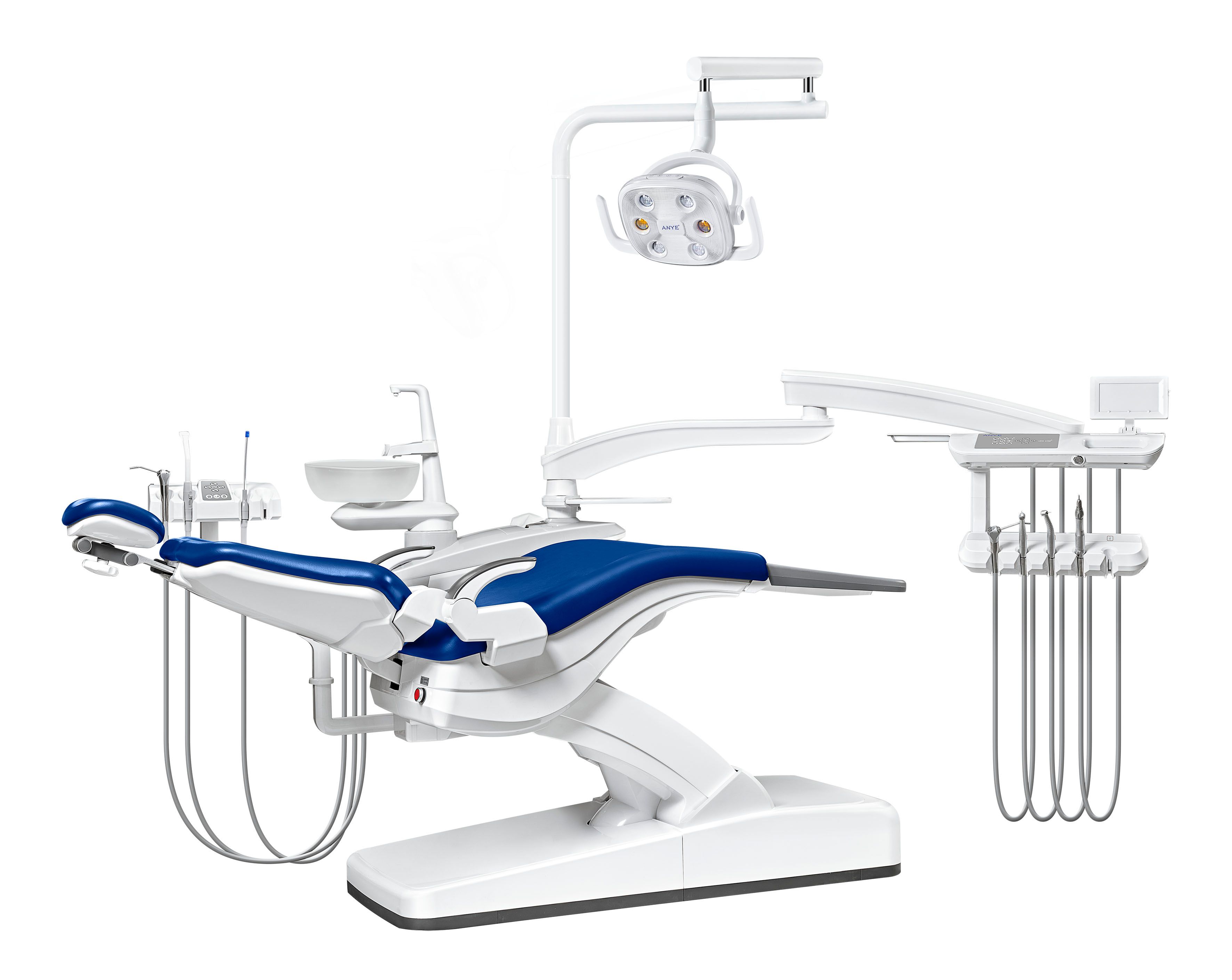

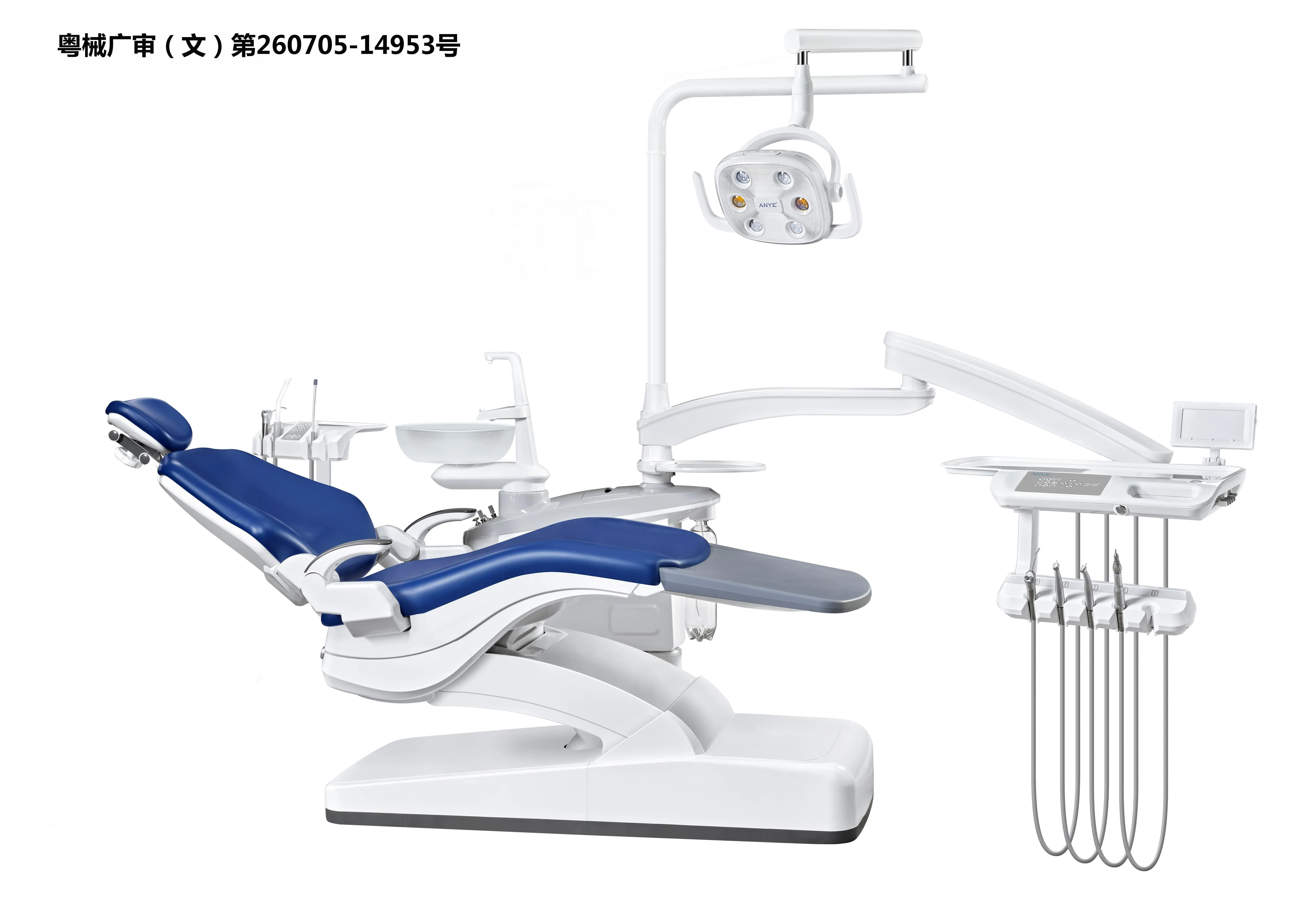

Dental Unit AY-215B1

Dental Unit AY-215B1

AY-215B1 is made of a fourth-generation high-end professional dental unit based on comfort and technology. The product is designed according to market demand to meet the clinical professional needs of medical staff and provide patients with wide and comfortable seats. It is in line with the ergonomic streamline design, can automatically cooperate with the cushion movement to form an elevation angle, and has a stronger sense of back support. The intimate design of AY-215B1 can bring more comfort to patients.




Pay attention to every detail

The design concept is "people-oriented", "quality" and "function".AY-215B1 is created by a fusion of sophisticated ergonomic laws and comprehensive functions.The attention to every detail fully demonstrates Anye Medical's high standards and pursuit of quality.




Product details:


A11

Detachable Spittoon


The spittoon is detachable for easy cleaning, it can be rotated by 90°for patients to spit.



A12

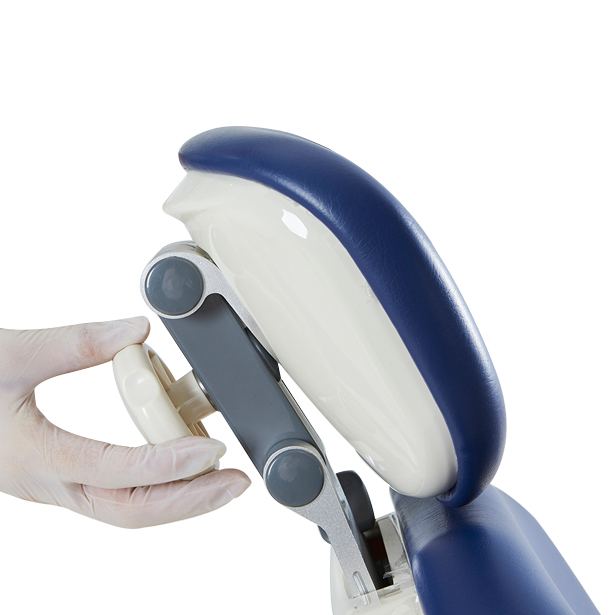

Adjustable Comfort Headrest


The adjustable curved headrest is more comfortable than the traditional flat headrest, its prevents the head from shaking and can be adjusted from multiple angles.




A13

Instrument Tray


Instrument tray with an air brake to make it stable and not shake when the dentist is working and the large-capacity instrument panel is convenient for storing medical supplies needed for treatment.



A14

Adjustable White and yellow light LED lamp


Sensor and manual are available. Color temperature of 5.000k±10% reflected light is more uniform, light source adopts a mixture of yellow and white which is closer to natural light. It is recommended to use yellow light for resin filling to prevent the resin from curing prematurely.

A15

Rotatable Handpiece Hanger


Humanized design, the angle of the hanger can be adjusted independently which is to meet the usage habits of different dentists.



A16

Assistant operating instrument tray


The assistant operating tray with multifunction buttons, it is convenient for assistant to use the common functions of dental chair and assist dentists to improve work efficiency.



A17

Flushing and Water Supply


The water supply nozzle is 2cm higher than the surface of the spittoon cylinder to avoid cross infection caused by water splashing to the water supply nozzle during sputum flushing.



A18

Rotatable Cabinet


The side box can be rotated 45° and the moving range is easily locate the space required by the assistant.



A19

Water Storage Bottle


1.5L large capacity water storage bottle, transparent material, water storage is obvious.



A10

Foot Pad


The foot pad is made of die-casting, its easy to clear. Patients do not need to take off their shoes for treatment.




Rotatable side box

Glass Plate


The rotatable plate can hold keys, mobile phones, mirrors, tissues and others.




Dentist Stool

Aluminum Cabinet


High strength integral molding, integral casting aluminum, no rust, high hardness, durable, not easy to deformation.



A113

Metal backrest


The backrest inside is made of 4mm steel which is solid and stable. The outer layer adopts electrostatic spray paint process which with strong adhesion.



A114

Dentist Stool C


Dental stool C with 360°mute universal wheel which is flexible to move, cushion lifting, backrest pitching. Its provides the dentist with good support for the haunch and waist.



140x140

Chair Frame


The chair frame is made of 4mm metal cutting by the laser machine. Its with precise dimensions which is the highest standard in the dental unit industry.




140x140

Cast aluminum lamp holder


Cast aluminum lamp holder, high flexibility, long service life (after 100,000 fatigue tests).



Key parts:

4mm high quality steel is cut by laser cutting machine

4mm High Quality Steel Is Cut By Laser Cutting Machine

All ABS Plastic by Injection Moulding

All ABS Plastic By Injection Moulding

import medical water & air tube

Import Medical Water & Air Tube


Import member and valve

Import Member And Valve

import motor

Import Motor

Import Pressure Reducing Valve

Import Pressure Reducing Valve

import Solenoid Valve

Import Solenoid Valve


Power Supply With Protection System

Power Supply With Protection System

Self-designed PCB System, Import Chip

Self-designed PCB System, Import Chip

Technical Parameters:


Power Voltage 220V-50HZ/60HZ
Motor Voltage 24V
Air Pressure 0.5MPa-0.8MPa
Water Pressure 0.2MPa-0.4MPa



LED Light:


Rated input Voltage AC12V±10%
Maximum Power 15VA
Light Source 1 light-emitting diodes (LED)
Color Temperature 5,000K ± 10%
Illuminance Adjustable from <8,000 to >30,000



Configutation:


24V DC Motor
Down Mounted Instrument Tray
3-Way Syringe(Assistant)Cold/Hot Water
Assistant Operating Control System
Water Heater System
Strong Suction Tube
Weak Suction Tube
Air Brake Instrument Tray
Emergency Switch(On/Off)
Auto Spittoon Flush And Cup Filler Control System
Detachable 90°Moveble Spittoon
Control Box With Main Switch(Water/Electric/Air)
Reflective LED Operating Ligth(White/Yellow)
Dentist stool C
Glass Plate
Movable Cabinet
Glass Spittoon
The Latest Generation Integral Chair Frame System
Cast Aluminum Cabinet
Water One-way Valve(Anti-backflow Function)

Opitons

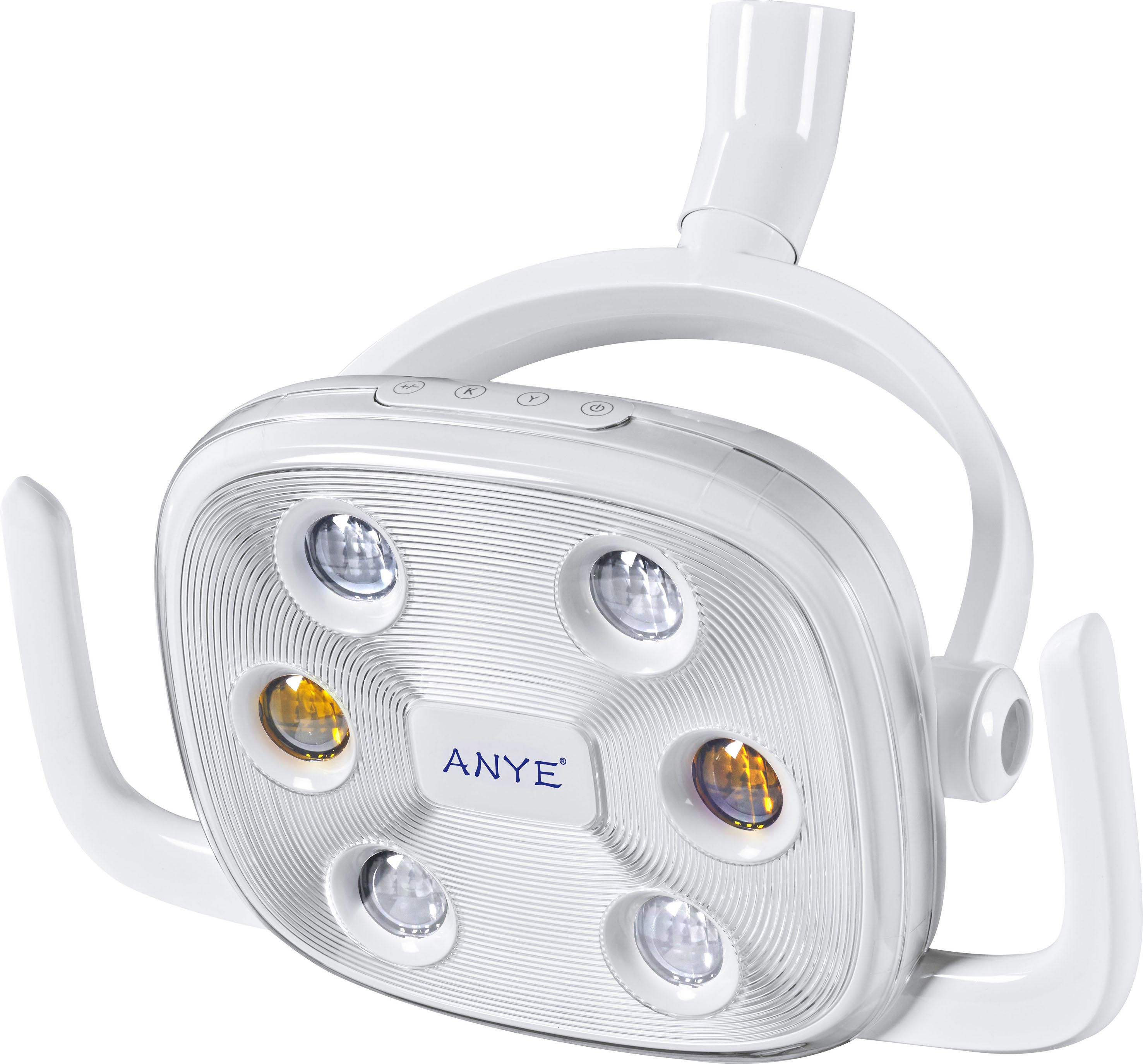

8 Eyes operating light (whiteyellow)

8 Eyes operating light (whiteyellow)

4 Eyes operating light (white)

4 Eyes operating light (white)

lmplant operating light (white)

lmplant operating light (white)

Reflected operating light (whiteyellow)

Reflected operating light (whiteyellow)


Dentist stool C

Dentist stool C

Dentist stool A

Dentist stool A

Luxury Top-mounted instrument tray

Luxury Top-mounted instrument tray

Top-mounted instrument tray

Top-mounted instrument tray


Multifunctional foot pedal

Luxury cast aluminum multifunctional pedal

Foot pedal

Cast aluminum multifunctional pedal

Monitor holder

Cast aluminum pedal

Monitor holder



Curing Light

Foot pedal

Curing Light

Monitor holder

Scaler



Colors Available:

Standard: PU

Sky BlueSky Blue
Light BlueLight Blue
Dark BlueDark Blue
Light GrayLight Gray
GreenGreen
Green
YellowYellow
OrangeOrange
Light GrayRose Red
lvorylvory

Optional:  Leather


Eco-friendly leather EmeraldEmerald
Eco-friendly leather Orange RedOrange
Eco-friendly leather Chinese RedChinese Red
Eco-friendly leather Light GreenLight Green
Eco-friendly leather Bark BrownBark Brown
Eco-friendly leather Sapphire BlueSapphire Blue
Eco-friendly leather Dark GreyDark Grey
Eco-friendly leather Amber BrowAmber Brown
Eco-friendly leather Olive GreenOlive Green
Eco-friendly leather Rose RedRose Red
