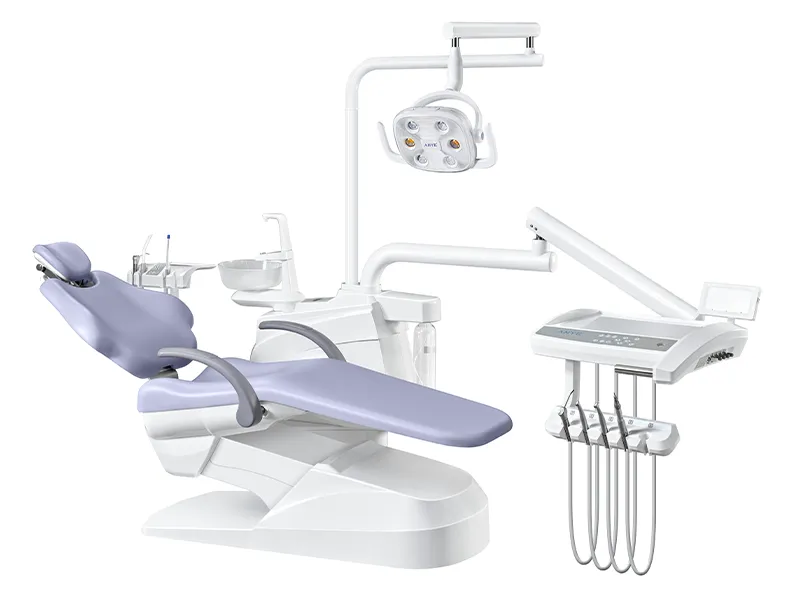

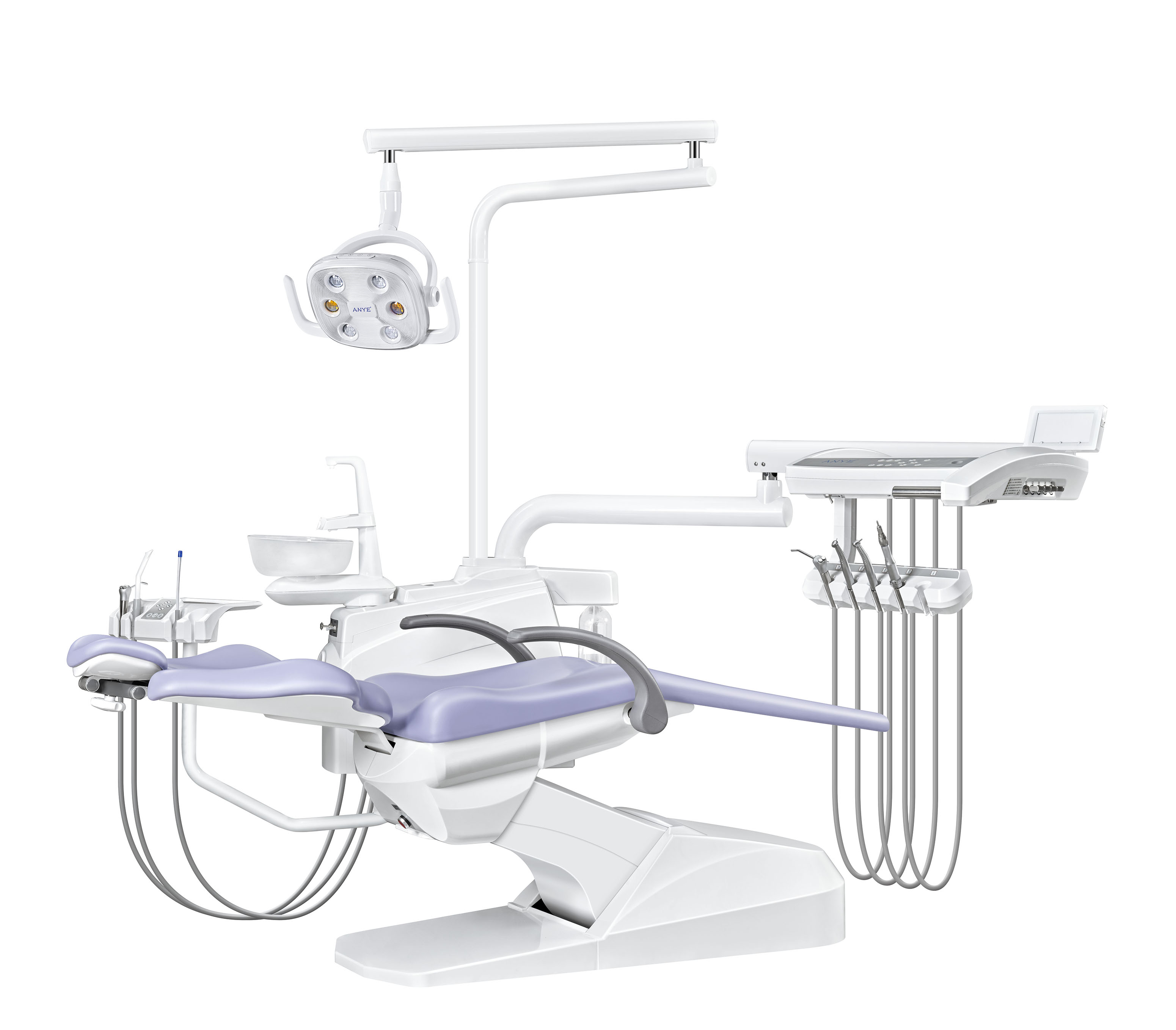

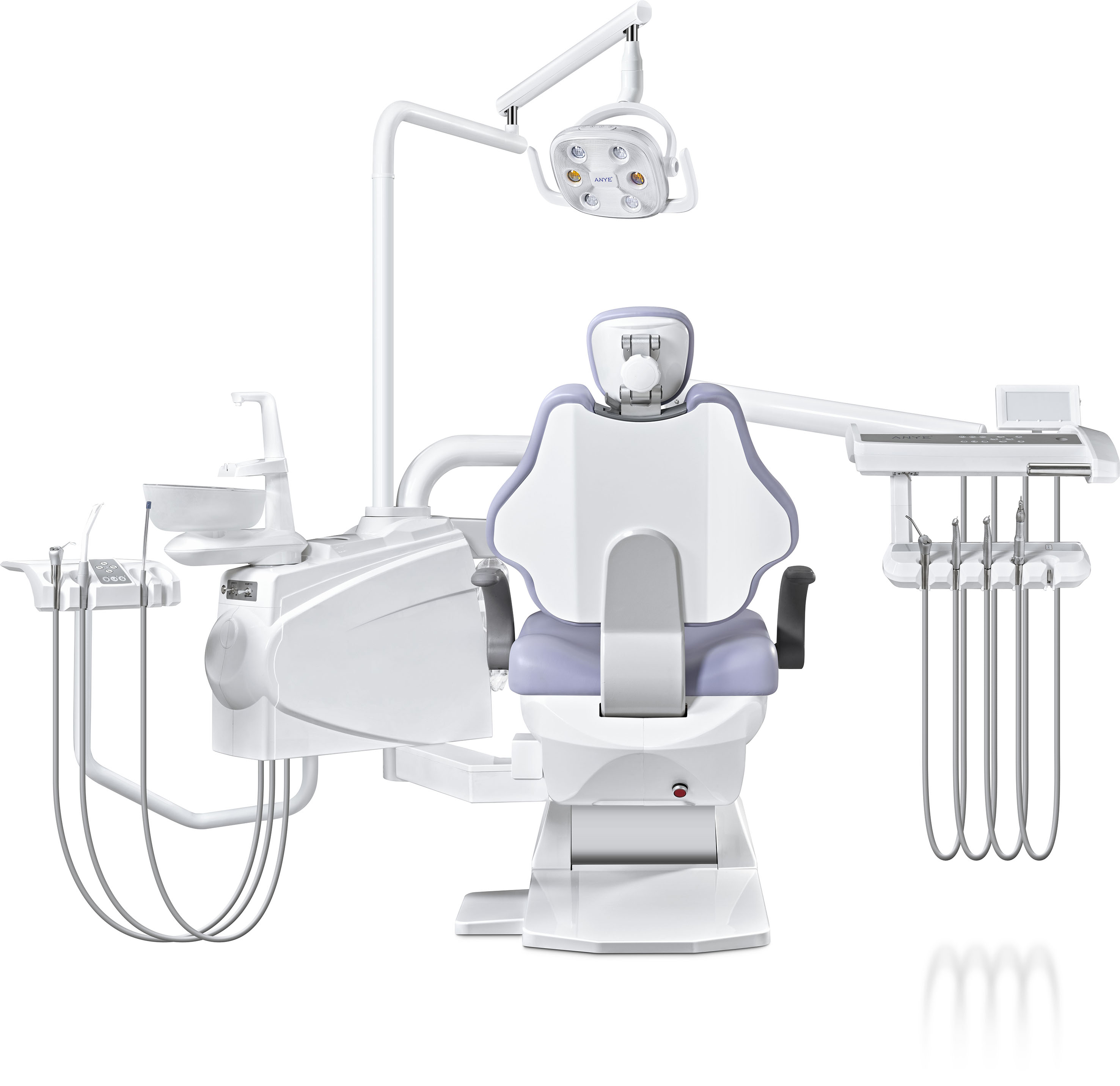

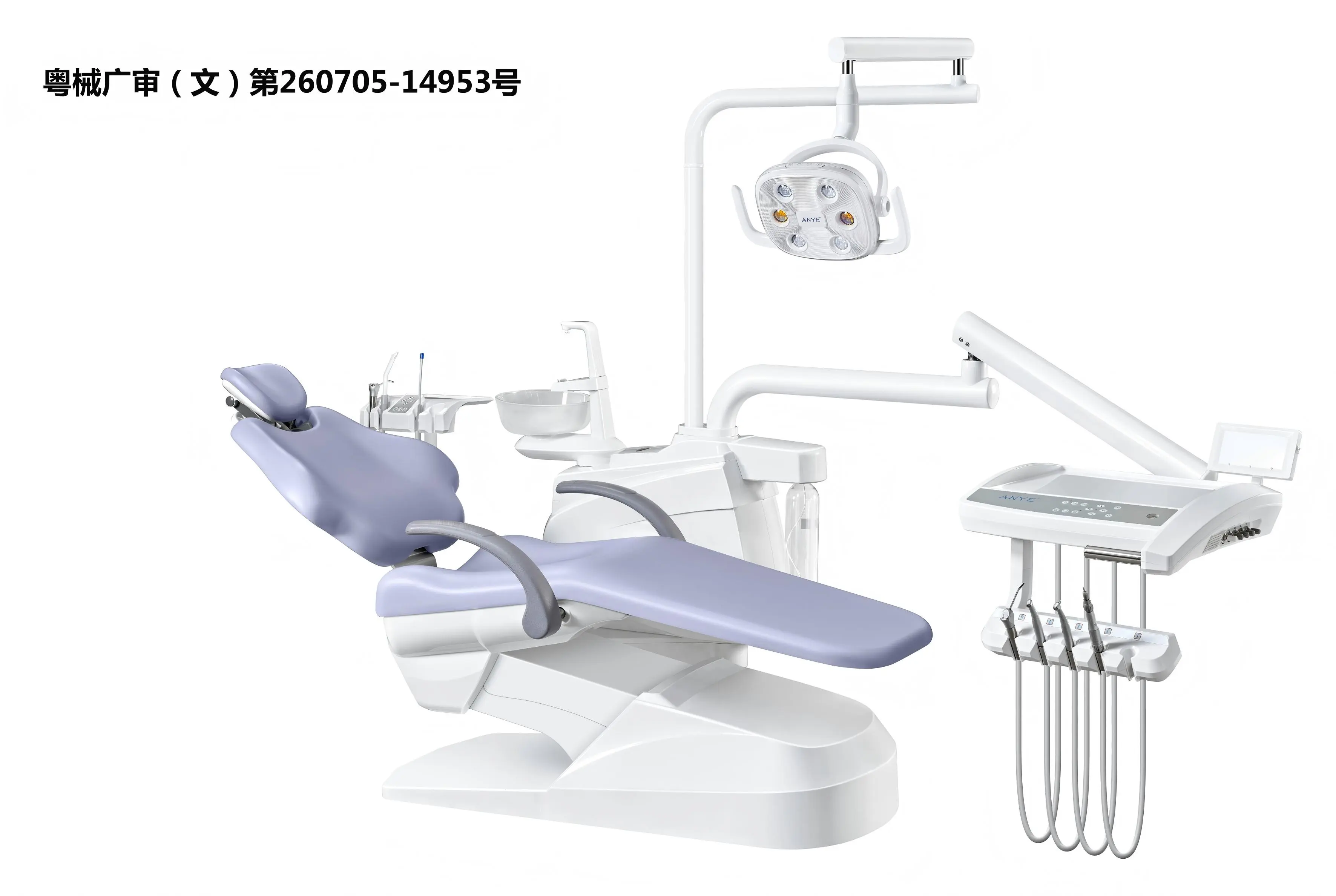

Dental Unit AY-215C2
AY-215C2 is made of a high-end professional dental unit based on comfort and technology. The product is designed according to market demand to meet the clinical professional needs of medical staff and provide patients with wide and comfortable seats. It is in line with the ergonomic streamline design, can automatically cooperate with the cushion movement to form an elevation angle, and has a stronger sense of back support. The intimate design of AY-215C2 can bring more comfort to patients.
![C2-2](http://v4-upload.goalsites.com/682/1622874107_57.jpg)
CONCEPT OF THOUGHTFUL DESIGN
Ergonomic and streamlined backrest design,which can automaticallycooperate with the seat to form an elevation,creating stronger sense ofsupport from backrest.
The curved pillow can prevent shaking.
Considerate design of AYA-215C2 can bring greatest comfort topatients.
Purchase parts:
Instrument Tray
Electric dental chair control system with 16 control buttons, 3 memories and one button preset working position which greatly improves the dentist's work efficiency.
The large-capacity instrument panel is convenient for storing medical supplies needed for treatment.
Luxury Detachable Spittoon
The spittoon is detachable for easy cleaning, it can be rotated by 90°for patients to spit.

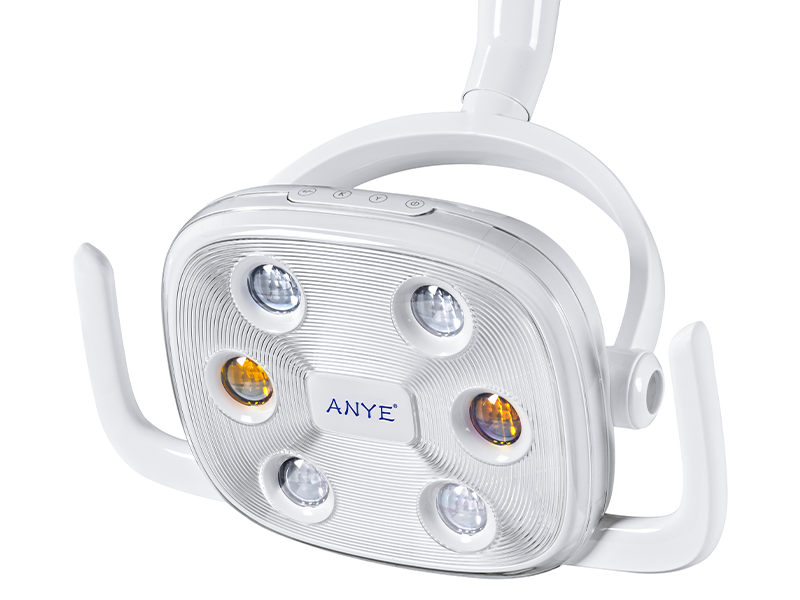

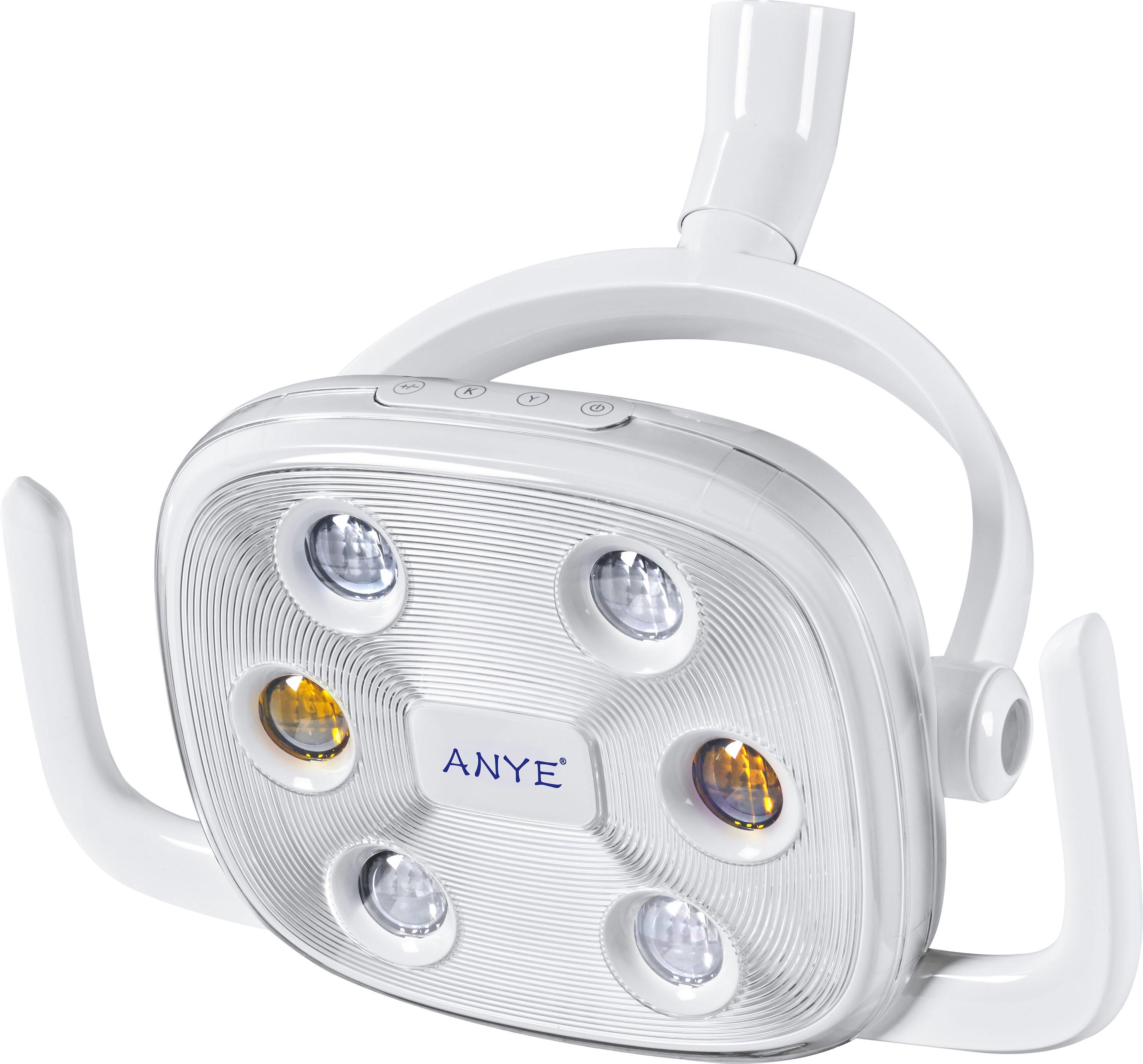

White and yellow light LED lamp
Sensor and manual are available. Color temperature of 5.000k±10% reflected light is more uniform, light source adopts a mixture of yellow and white which is closer to natural light. It is recommended to use yellow light for resin filling to prevent the resin from curing prematurely.
Glass Plate
The rotatable plate can hold keys, mobile phones, mirrors, tissues and others.
Assistant Operating Control System
With 7 control buttons, it is convenient for assistant to use the common functions of dental chair, assist dentists to improve work efficiency.
Flushing and Water Supply
The water supply nozzle is higher 2cm above surface of the spittoon tank to avoid cross-infection caused by water splashing on the water supply nozzle during flushing. The water supply seat can be detached for cleaning.
Rotatable Cabinet
The side box can be rotated 45° and the moving range is easily locate the space required by the assistant.
Foot Pad
The Foot pad is made of PU material that the patients do not need to take off their shoes for treatment, which is convenient for cleaning.
Rotatable Armrest
The armrest can be rotated horizontally which is convenient for patients to lie up and down the chair.
Aluminum Cabinet
High strength integral molding, integral casting aluminum, no rust, high hardness, durable, not easy to deformation.

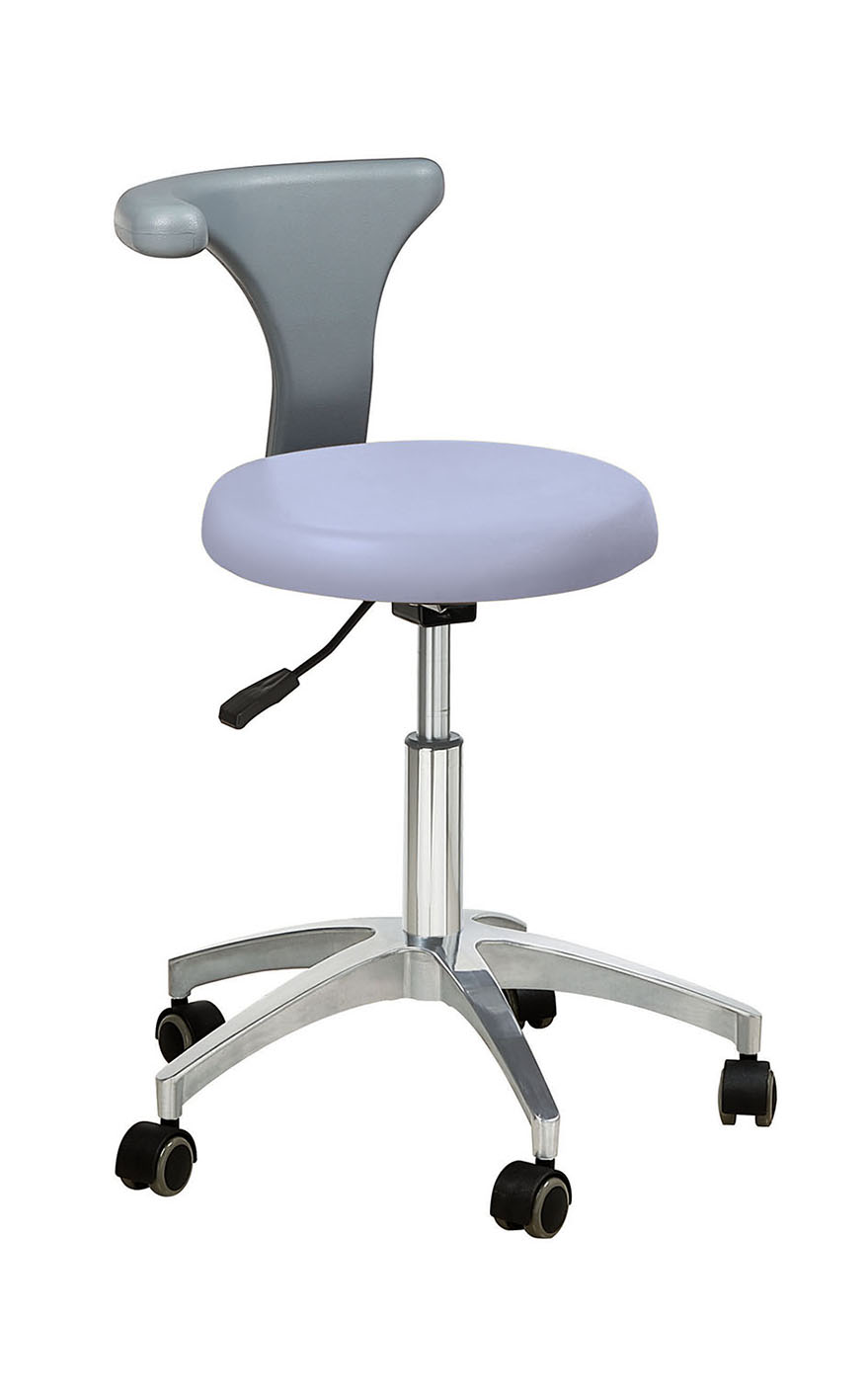

Dentist Stool A
Dental stool C with 360°mute universal wheel which is flexible to move, cushion lifting. It’s provides the dentist with good support for the haunch and waist.
Chair Frame
The chair frame is made of 4mm metal cutting by the laser machine. It’s with precise dimensions which is the highest standard in the dental unit industry.
Cast aluminum lamp holder
Cast aluminum lamp holder, high flexibility, long service life (after 100,000 fatigue tests).
![4mm high quality steel is cut by laser cutting machine](http://v4-upload.goalsites.com/682/1621991186_4mm high quality steel is cut by laser cutting machine.jpg)
4mm High Quality Steel Is Cut By Laser Cutting Machine
![All ABS Plastic by Injection Moulding](http://v4-upload.goalsites.com/682/1621991201_All ABS Plastic by Injection Moulding.jpg)
All ABS Plastic By Injection Moulding
![import medical water & air tube](http://v4-upload.goalsites.com/682/1621991227_import medical water & air tube.jpg)
Import Medical Water & Air Tube
![Import member and valve](http://v4-upload.goalsites.com/682/1621991273_Import member and valve.jpg)
Import Member And Valve
![import motor](http://v4-upload.goalsites.com/682/1621991293_import motor.jpg)
Import Motor
![Import Pressure Reducing Valve](http://v4-upload.goalsites.com/682/1621991316_Import Pressure Reducing Valve.jpg)
Import Pressure Reducing Valve
![import Solenoid Valve](http://v4-upload.goalsites.com/682/1621991432_import Solenoid Valve.jpg)
Import Solenoid Valve
![Power Supply With Protection System](http://v4-upload.goalsites.com/682/1621991509_Power Supply With Protection System.jpg)
Power Supply With Protection System
![Self-designed PCB System, Import Chip](http://v4-upload.goalsites.com/682/1621991527_Self-designed PCB System, Import Chip.jpg)
Self-designed PCB System, Import Chip
Technical Parameters:
Power Voltage | 22V-50HZ/60HZ |
Motor Voltage | 24V |
Air Pressure | 0.5MPa-0.8MPa |
Water Pressure | 0.2MPa-0.4MPa |
LED Light:
Rated input Voltage | AC12V±10% |
Maximum Power | 15VA |
Light Source | 1 light-emitting diodes (LED) |
Color Temperature | 5,000K ± 10% |
Illuminance | Adjustable from <8,000 to >30,000 |
Configutation:
24V DC Motor |
Down Mounted Instrument Tray |
3-Way Syringe(Assistant)Cold/Hot Water |
Assistant Operating Control System |
Water Heater System |
Strong Suction Tube |
Weak Suction Tube |
Air Brake Instrument Tray |
Emergency Switch(On/Off) |
Auto Spittoon Fluch And Cup Filler Control Control System |
Detachable 90°Moveble Spittoon |
Control Box With Main Switch(Water/Electric/Air) |
Reflective LED Operating Light(White/Yellow) |
3 Memories |
Dentist stool A |
Glass Plate |
45°Rotating Cabinet |
Glass Spittoon |
Synchronized |
Third Generation Chair Frame Compensation System |
Cast Aluminum Cabiner |
Water One-way Valve(Anti-backlow Function) |
Opitons

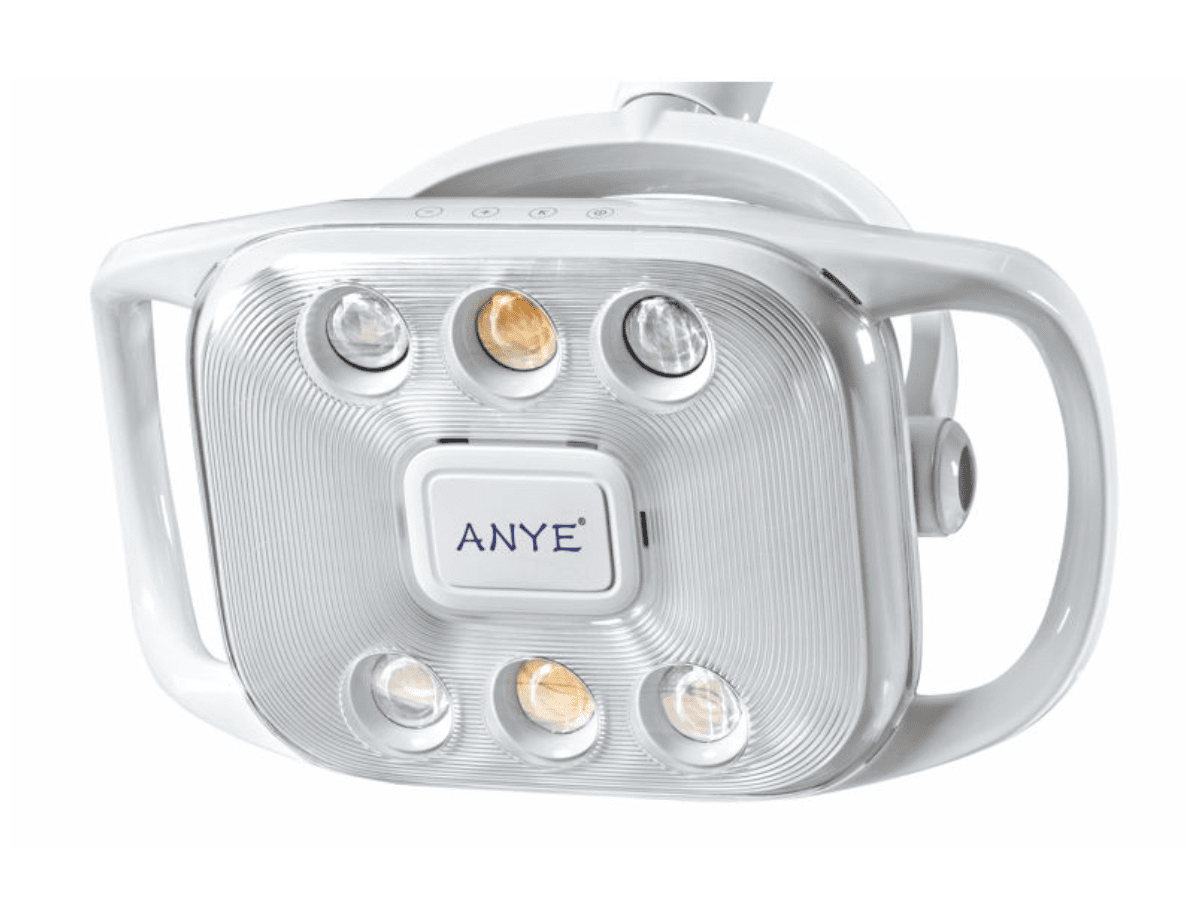

![8 Eyes operating light (whiteyellow)](http://v4-upload.goalsites.com/682/1620439051_8 Eyes operating light (whiteyellow).jpg)
8 Eyes operating light (whiteyellow)
![4 Eyes operating light (white)](http://v4-upload.goalsites.com/682/1620439029_4 Eyes operating light (white).jpg)
4 Eyes operating light (white)
![lmplant operating light (white)](http://v4-upload.goalsites.com/682/1620439191_lmplant operating light (white).jpg)
lmplant operating light (white)
![Reflected operating light (whiteyellow)](http://v4-upload.goalsites.com/682/1620439239_Reflected operating light (whiteyellow).jpg)
Reflected operating light (whiteyellow)
![Dentist stool C](http://v4-upload.goalsites.com/682/1620439315_Dentist stool C.jpg)
Dentist stool C
![Dentist stool A](http://v4-upload.goalsites.com/682/1620439334_Dentist stool A.jpg)
Dentist stool A
![Luxury Top-mounted instrument tray](http://v4-upload.goalsites.com/682/1620439358_Luxury Top-mounted instrument tray.jpg)
Luxury Top-mounted instrument tray
![Top-mounted instrument tray](http://v4-upload.goalsites.com/682/1620439381_Top-mounted instrument tray.jpg)
Top-mounted instrument tray
![Multifunctional foot pedal](http://v4-upload.goalsites.com/682/1620439537_Multifunctional foot pedal.jpg)
Multifunctional foot pedal
![Foot pedal](http://v4-upload.goalsites.com/682/1620439556_Foot pedal.jpg)
Foot pedal
![Monitor holder](http://v4-upload.goalsites.com/682/1620439575_Monitor holder.jpg)
Monitor holder
![](http://v4-upload.goalsites.com/682/1620439610_1.jpg)
Curing Light
![](http://v4-upload.goalsites.com/682/1620439660_33.jpg)
Curing Light
![](http://v4-upload.goalsites.com/682/1620439684_3632.jpg)
Scaler
Colors Available:
Standard: PU
![Sky Blue](http://v4-upload.goalsites.com/682/1620440399_Sky Blue.png)
![Light Blue](http://v4-upload.goalsites.com/682/1620440212_Light Blue.png)
![Dark Blue](http://v4-upload.goalsites.com/682/1620439907_Dark Blue.png)
![Light Gray](http://v4-upload.goalsites.com/682/1620440230_Light Gray.png)
![Green](http://v4-upload.goalsites.com/682/1620440463_Green.png)
![](http://v4-upload.goalsites.com/682/1620457622_06.jpg)
![Yellow](http://v4-upload.goalsites.com/682/1620440415_Yellow.png)
![Orange](http://v4-upload.goalsites.com/682/1620440266_Orange.png)
![Light Gray](http://v4-upload.goalsites.com/682/1620440373_Rose Red.png)
![lvory](http://v4-upload.goalsites.com/682/1620440284_lvory.png)
Optional: Leather
![Eco-friendly leather Emerald](http://v4-upload.goalsites.com/682/1620440033_Eco-friendly leather Emerald.png)
![Eco-friendly leather Orange Red](http://v4-upload.goalsites.com/682/1620440087_Eco-friendly leather Orange Red.png)
![Eco-friendly leather Chinese Red](http://v4-upload.goalsites.com/682/1620439959_Eco-friendly leather Chinese Red.png)
![Eco-friendly leather Light Green](http://v4-upload.goalsites.com/682/1620440054_Eco-friendly leather Light Green.png)
![Eco-friendly leather Bark Brown](http://v4-upload.goalsites.com/682/1620439941_Eco-friendly leather Bark Brown.png)
![Eco-friendly leather Sapphire Blue](http://v4-upload.goalsites.com/682/1620440197_Eco-friendly leather Sapphire Blue.png)
![Eco-friendly leather Dark Grey](http://v4-upload.goalsites.com/682/1620439974_Eco-friendly leather Dark Grey.png)
![Eco-friendly leather Amber Brow](http://v4-upload.goalsites.com/682/1620439925_Eco-friendly leather Amber Brow.png)
![Eco-friendly leather Olive Green](http://v4-upload.goalsites.com/682/1620440070_Eco-friendly leather Olive Green.png)
![Eco-friendly leather Rose Red](http://v4-upload.goalsites.com/682/1620440107_Eco-friendly leather Rose Red.png)
