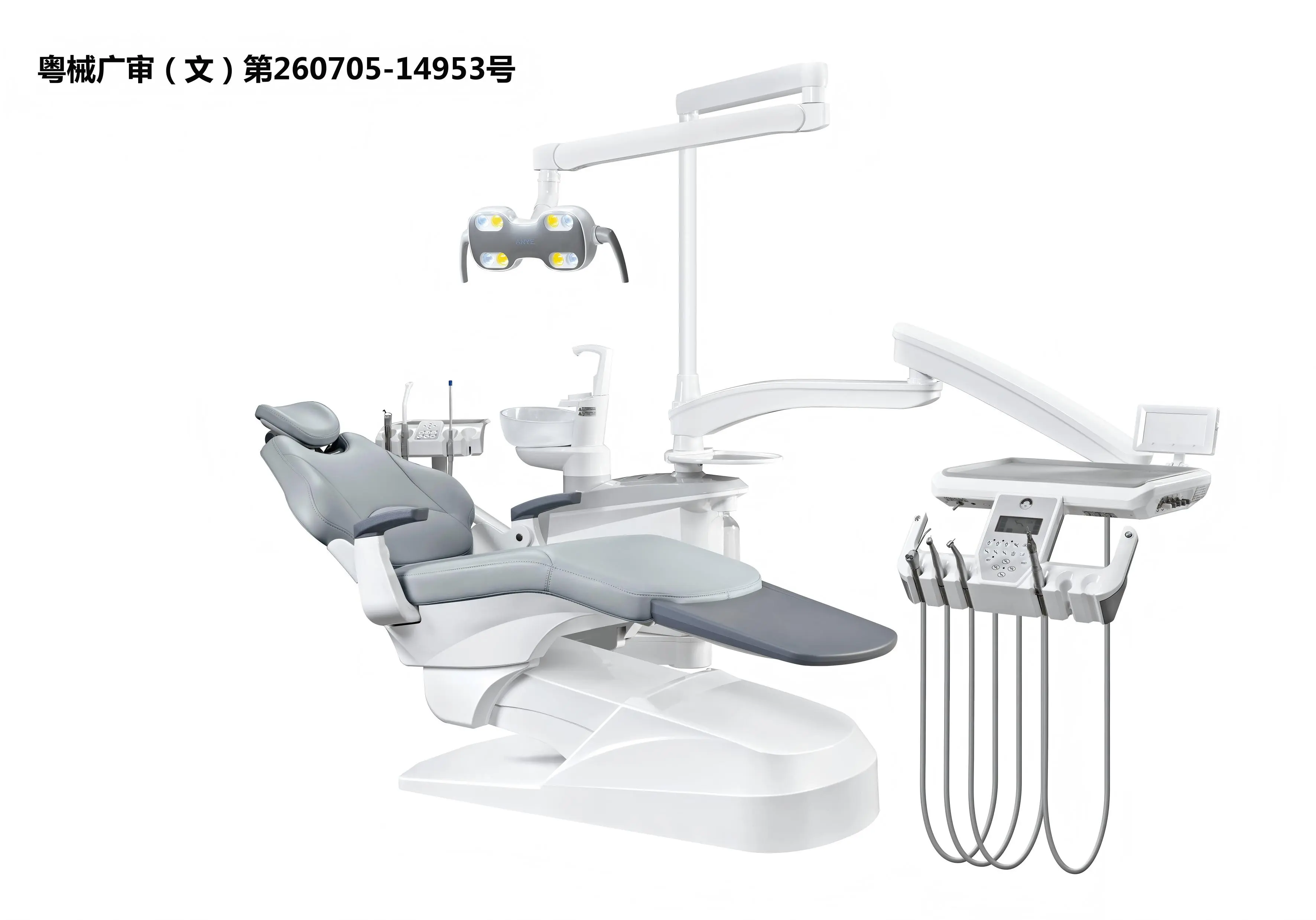

Dental Unit AY-215C3

Dental Unit AY-215C3

AY-215C3 is made of a high-end professional dental unit based on comfort and technology. The product is designed according to market demand to meet the clinical professional needs of medical staff and provide patients with wide and comfortable seats. It is in line with the ergonomic streamline design, can automatically cooperate with the cushion movement to form an elevation angle, and has a stronger sense of back support. The intimate design of AY-215C3 can bring more comfort to patients.


C3-2


c3-3




EXQUISITE

BEYOND COMPARE




Purchase parts:


C31

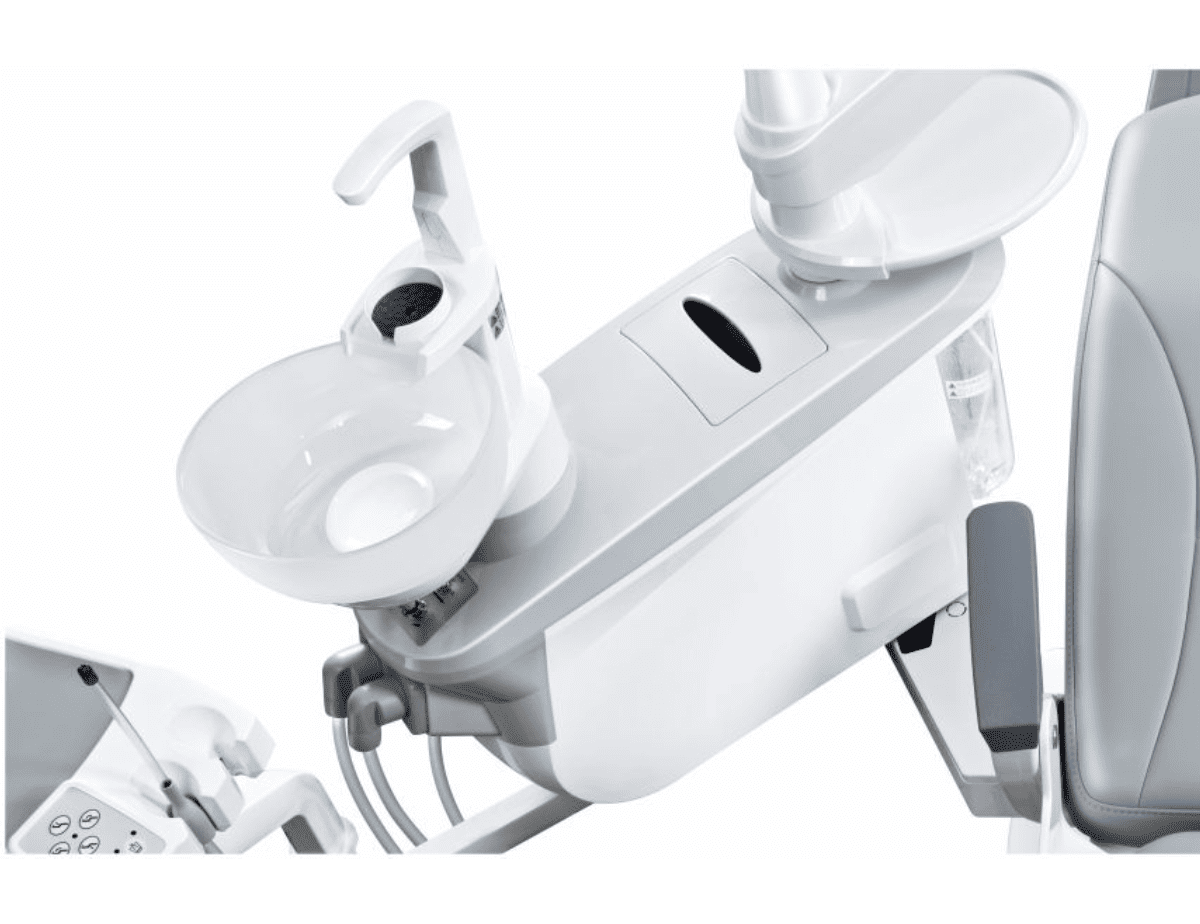

Luxury Detachable Spittoon


The spittoon is detachable for easy cleaning, it can be rotated by 90°for patients to spit.



C32

Instrument Tray


The bottom shell of the instrument tray is made of cast aluminum which is more solid and stable. There are 9 memories and barometer in front, it is convenient to watch the air pressure of handpiece tube at any time.

C33

LED Operating Light


Philips LED light source, adjustable from 8,000 to 30,000, infrared sensor switch or touch switch to control stepless dimming. Its with manual and sensor integration, flexible  and agile movement, and easy to locate the required angle of lighting.



C34

Glass Plate


The rotatable plate can hold keys, mobile phones, mirrors, tissues and others.

C35

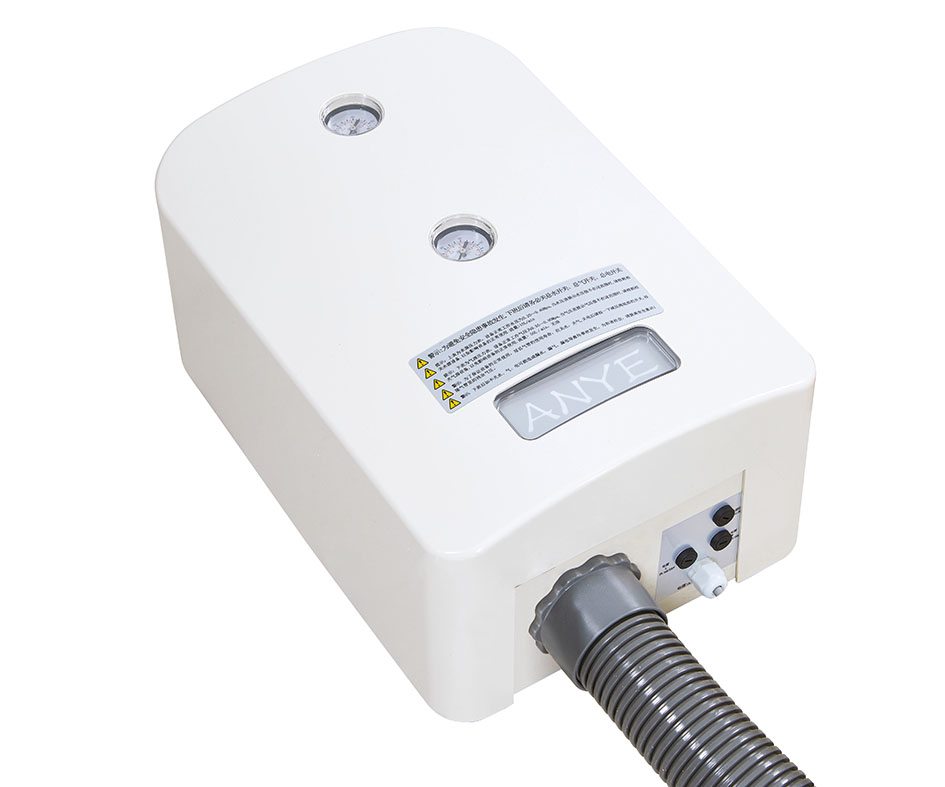

Junction Box


Enclosed power design, according to European safety standards, moisture-proof, dustproof and prevent electromagnetic interference. Its improve the stability and durability of the prower.



C36

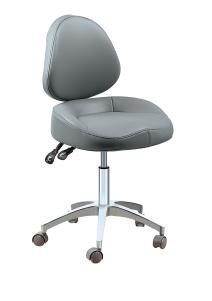

Dentist Stool C


Dental stool C with 360°mute universal wheel which is flexible to move, cushion lifting, backrest pitching. Its provides the dentist with good support for the haunch and waist.



C37

Multifunctional Foot Control


The pedals have self-lock function and equipped with control of rise and down, backrest forward and backward, blowing, flushing and water supply.



C38

Metal backrest


The backrest inside is made of 4mm steel which is solid and stable. The outer layer adopts electrostatic spray paint process which with strong adhesion.



C39

Chair Frame


The chair frame is made of 4mm metal cutting by the laser machine. Its with precise dimensions which is the highest standard in the dental unit industry.



C310

Aluminum Cabinet


High strength integral molding, integral casting aluminum, no rust, high hardness, durable, not easy to deformation.




140x140

Cast aluminum lamp holder


Cast aluminum lamp holder, high flexibility, long service life (after 100,000 fatigue tests).





Key parts:

4mm high quality steel is cut by laser cutting machine

4mm High Quality Steel Is Cut By Laser Cutting Machine

All ABS Plastic by Injection Moulding

All ABS Plastic By Injection Moulding

import medical water & air tube

Import Medical Water & Air Tube

Import member and valve

Import Member And Valve

import motor

Import Motor

Import Pressure Reducing Valve

Import Pressure Reducing Valve

import Solenoid Valve

Import Solenoid Valve

Power Supply With Protection System

Power Supply With Protection System

Self-designed PCB System, Import Chip

Self-designed PCB System, Import Chip

Technical Parameters:

Power Voltage 220V-50HZ/60HZ
Motor Voltage 24V
Air Pressure 0.5MPa-0.8MPa
Water Pressure 0.2MPa-0.4MPa


LED Light:

Rated input voltage AC 24V±10%
Maximum power 25VA
Light Source 4 white light-emitting diodes (LED)
Color Temperature 5,000K - 5,700K
Illuminance Adjustable from <8,000 to >30,000


Configutation:

24V DC Motor
Down Mounted Instrument Tray
3-Way Syringe(Assistant)Cold/Hot Water
Assistant Operating Control System
Water Heater System
Strong Suction Tube
Weak Suction Tube
Air Brake Instrument Tray
Emergency Switch(On/Off)
Auto Spittoon Flush And Cup Filler Control System
Detachable 90°Moveble Spittoon
Chair With Self-lock Function
Multifuncitonal Foot Pedal
Keypress Function For Spiting
Control Box With Main Switch(Water/Electric/Air)
4 Eys LED Operating Operating Light
Operation Status Display
9 Memories
Glass Plate
Movable Cabiner
Glass Spittoon
Third Generation Chair Frame Compensation System
Environment Leather
Cast Aluminum Cabinet
Water One-way Valve(Anti-backflow Function)

Opitons

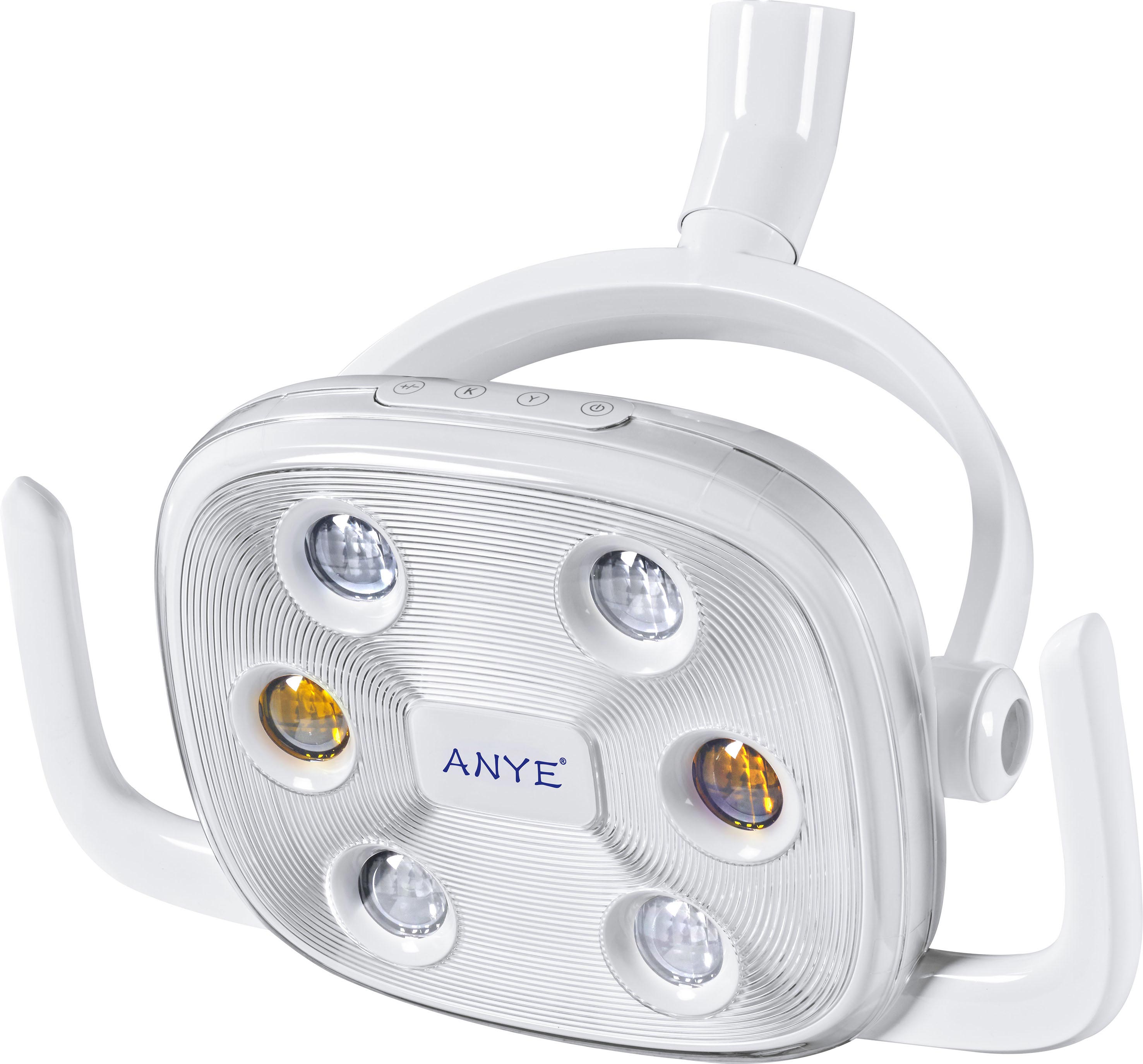

8 Eyes operating light (whiteyellow)

8 Eyes operating light (whiteyellow)

4 Eyes operating light (white)

4 Eyes operating light (white)

lmplant operating light (white)

lmplant operating light (white)

Reflected operating light (whiteyellow)

Reflected operating light (whiteyellow)


Dentist stool C

Dentist stool C

Dentist stool A

Dentist stool A

Luxury Top-mounted instrument tray

Luxury Top-mounted instrument tray

Top-mounted instrument tray

Top-mounted instrument tray


Multifunctional foot pedal

Luxury cast aluminum multifunctional pedal

Foot pedal

Cast aluminum multifunctional pedal

Monitor holder

Cast aluminum peda

Monitor holder



Curing Light

Foot pedal

Curing Light

Monitor holder

Scaler




Colors Available:

Standard: PU

Sky BlueSky Blue
Light BlueLight Blue
Dark BlueDark Blue
Light GrayLight Gray
GreenGreen
Green
YellowYellow
OrangeOrange
Light GrayRose Red
lvorylvory

Optional:  Leather


Eco-friendly leather EmeraldEmerald
Eco-friendly leather Orange RedOrange
Eco-friendly leather Chinese RedChinese Red
Eco-friendly leather Light GreenLight Green
Eco-friendly leather Bark BrownBark Brown
Eco-friendly leather Sapphire BlueSapphire Blue
Eco-friendly leather Dark GreyDark Grey
Eco-friendly leather Amber BrowAmber Brown
Eco-friendly leather Olive GreenOlive Green
Eco-friendly leather Rose RedRose Red
