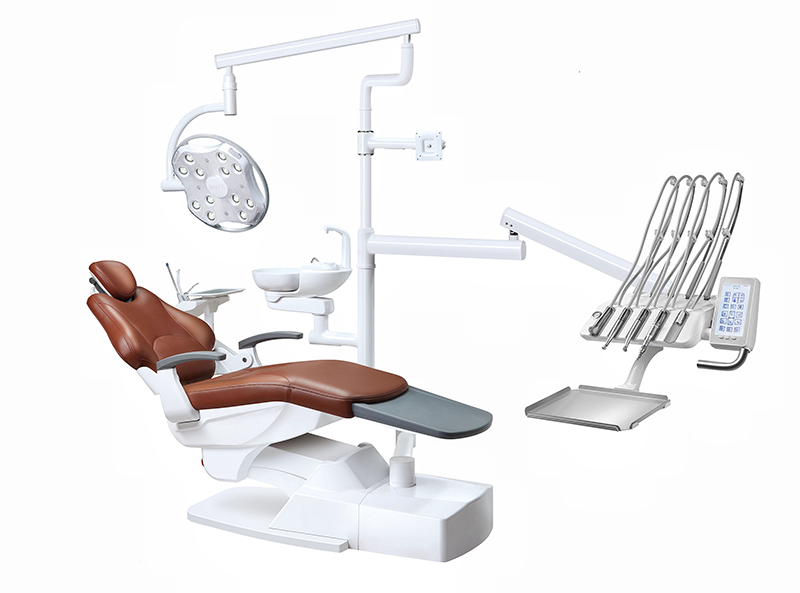

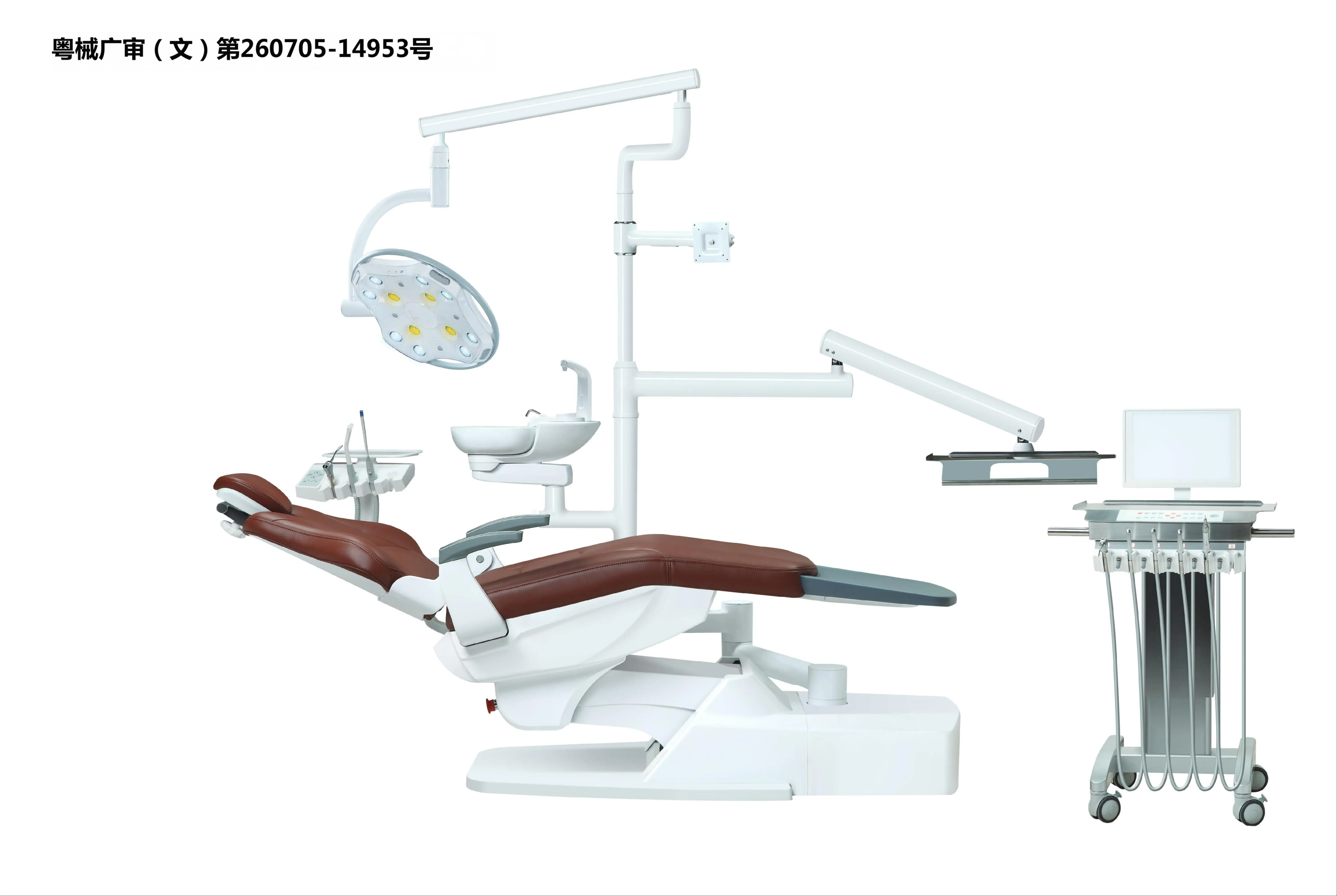

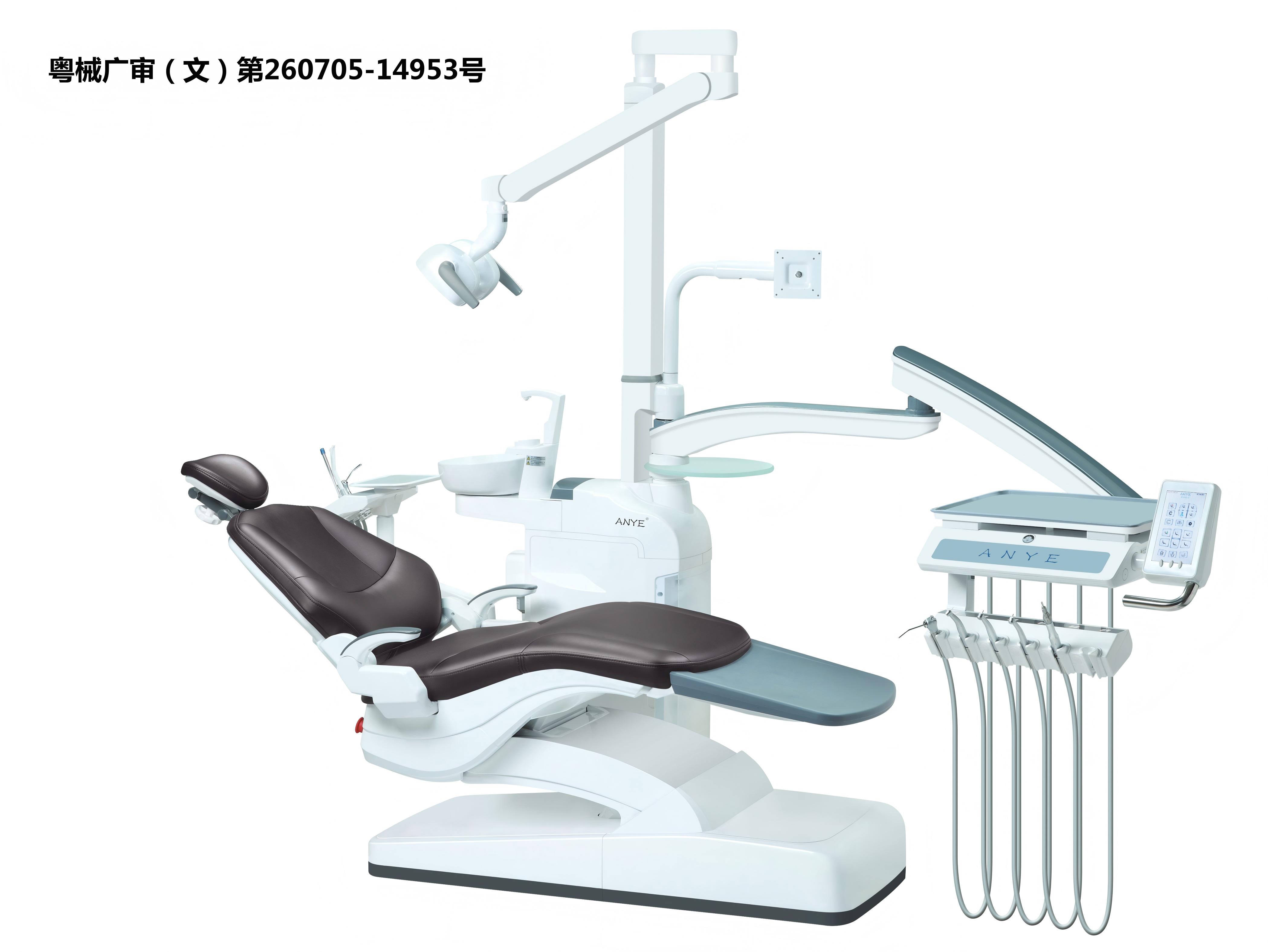

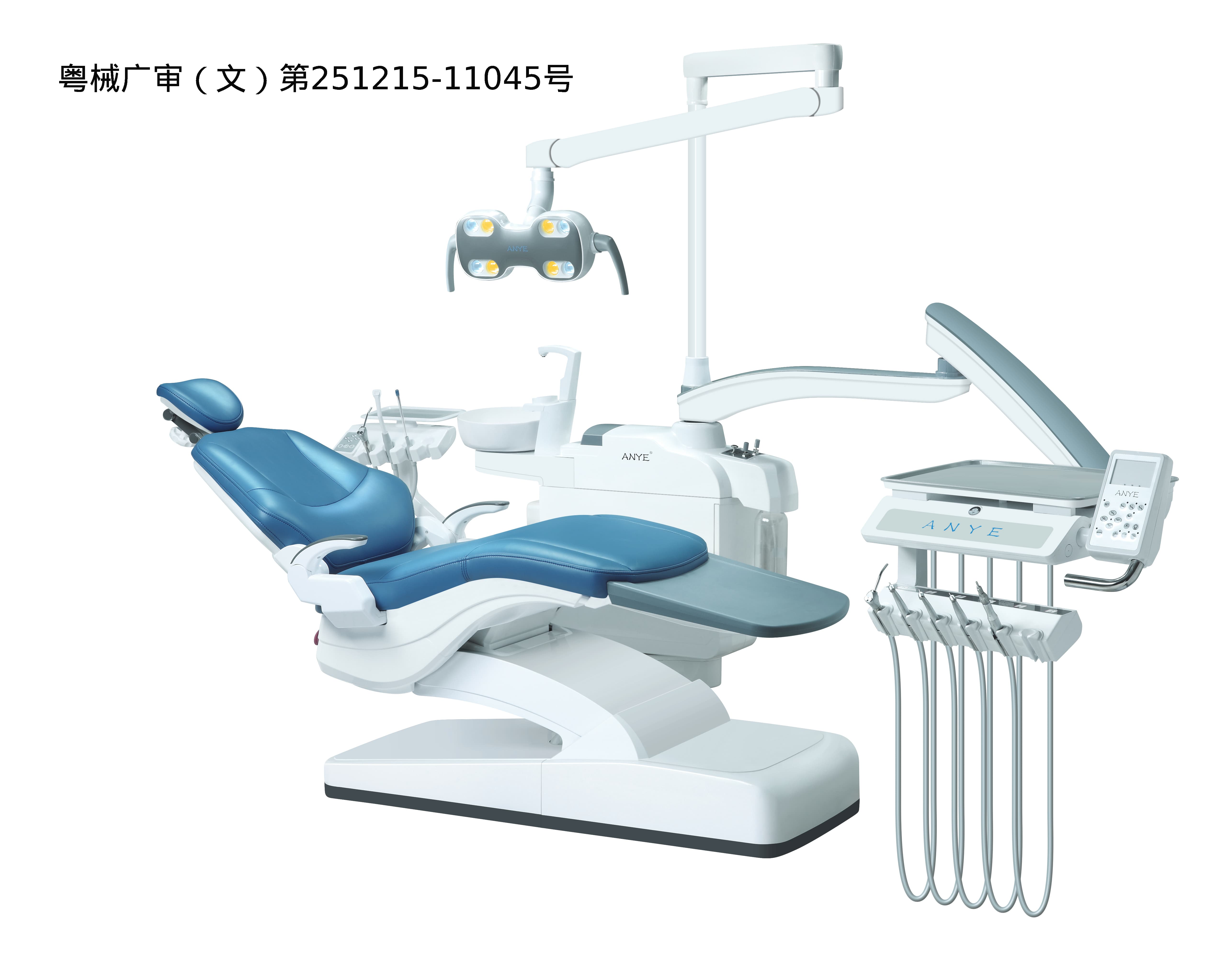

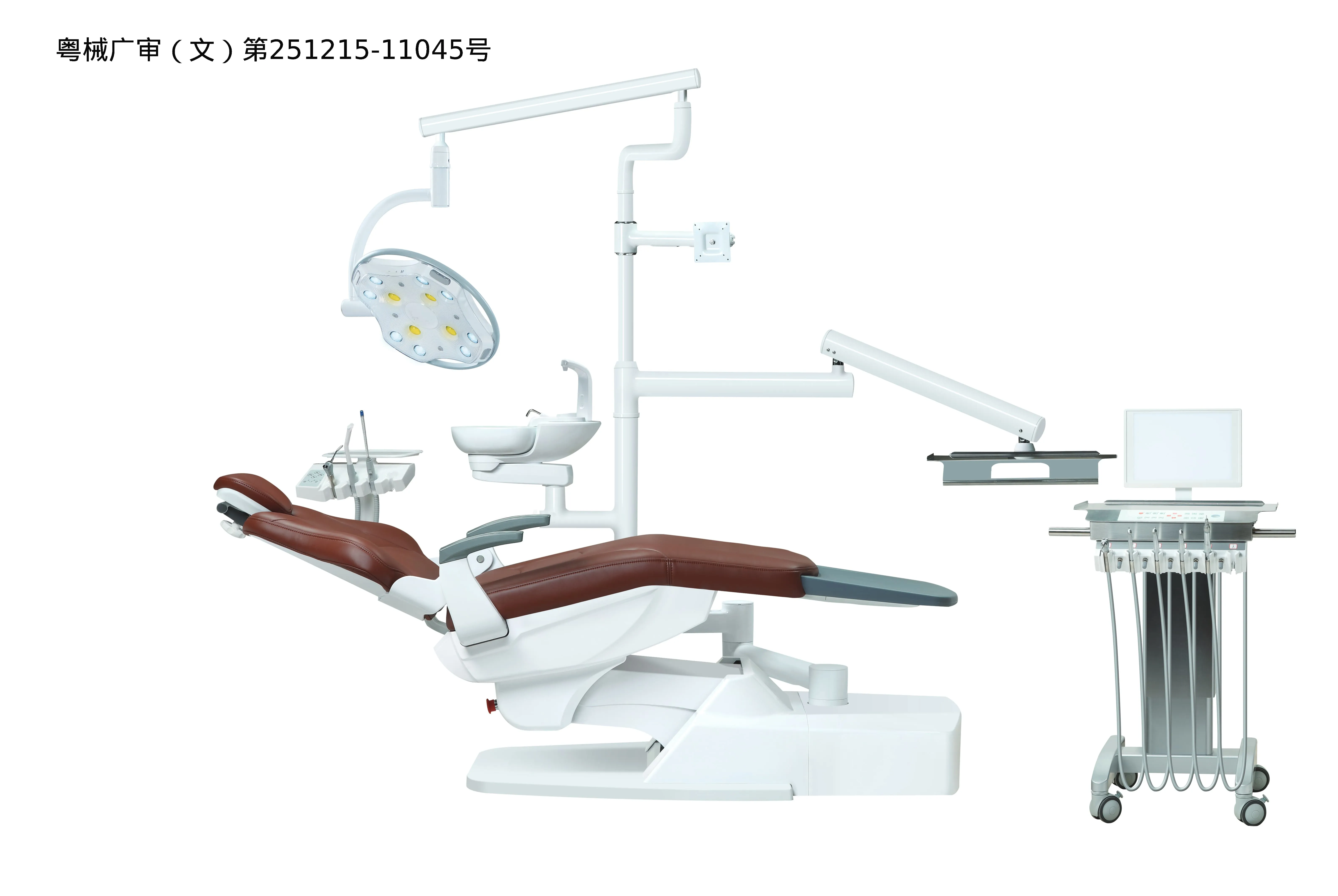

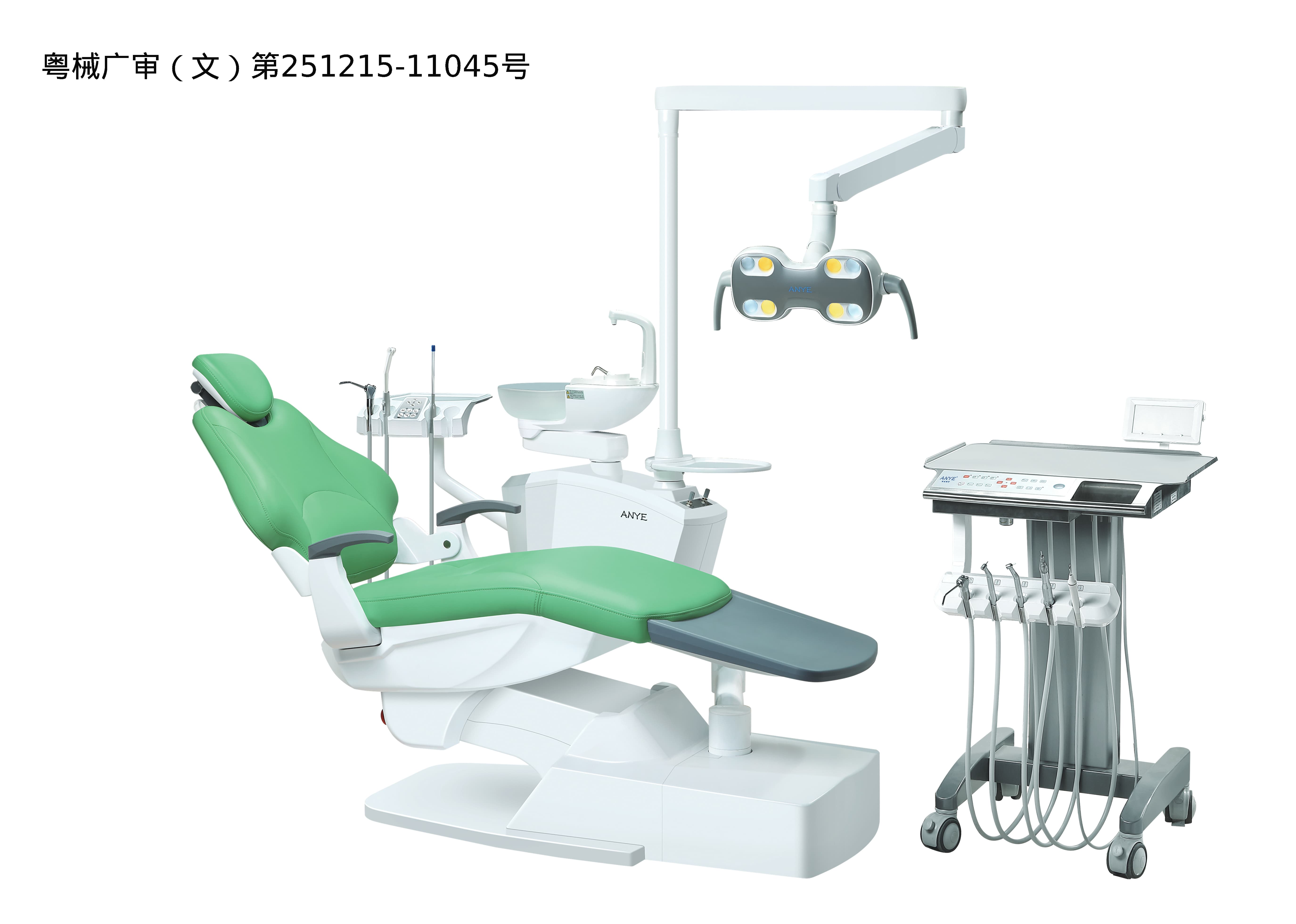

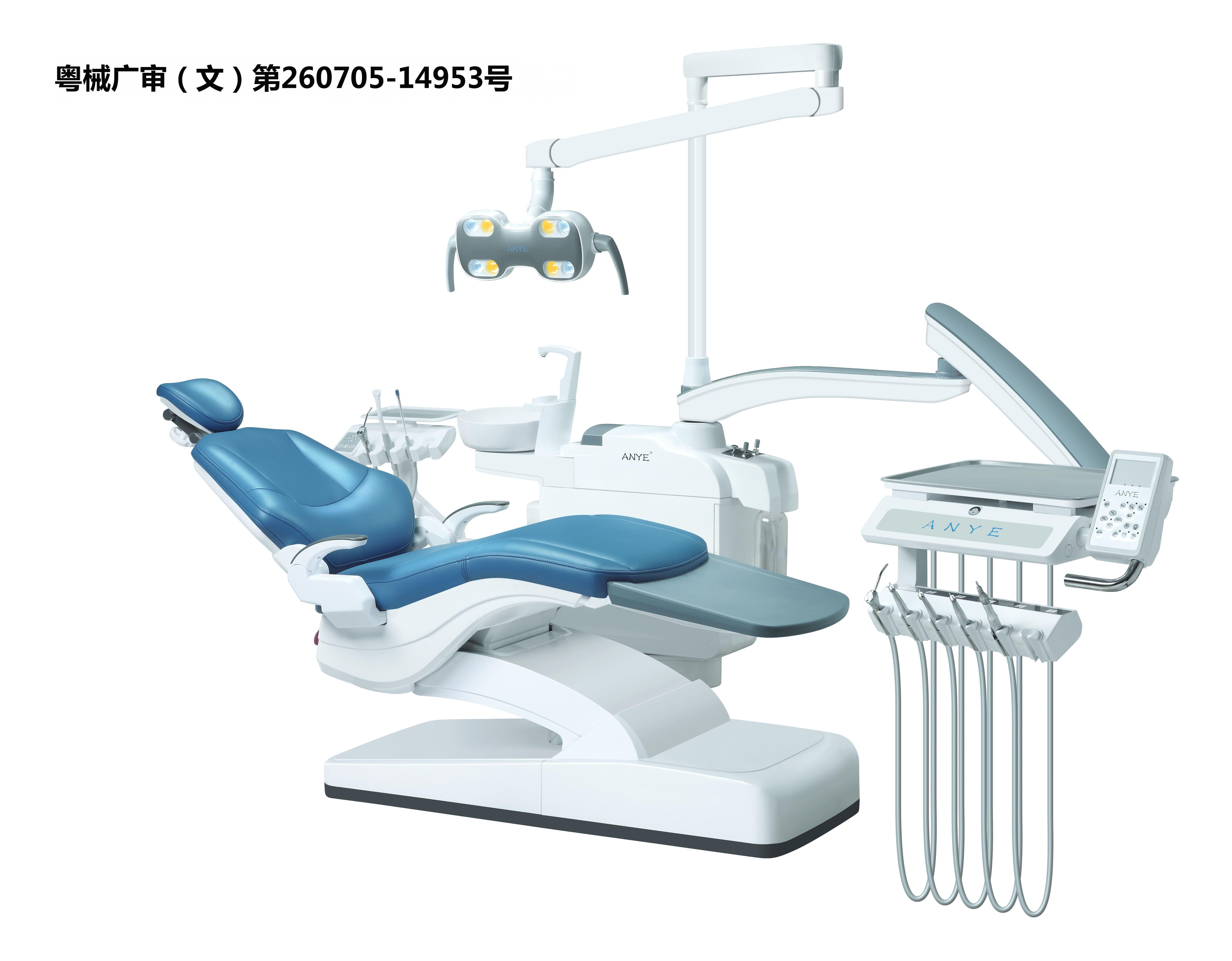

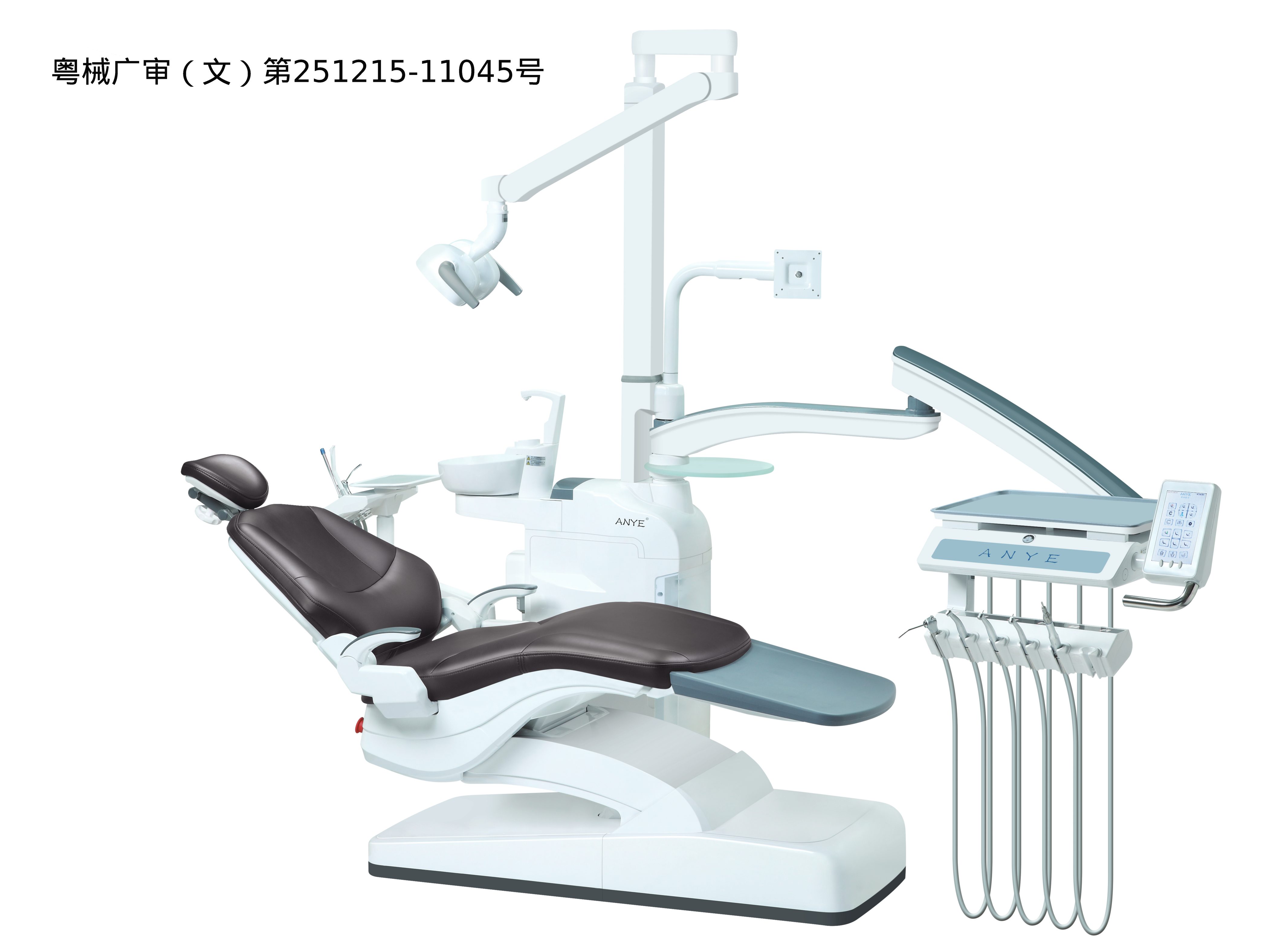

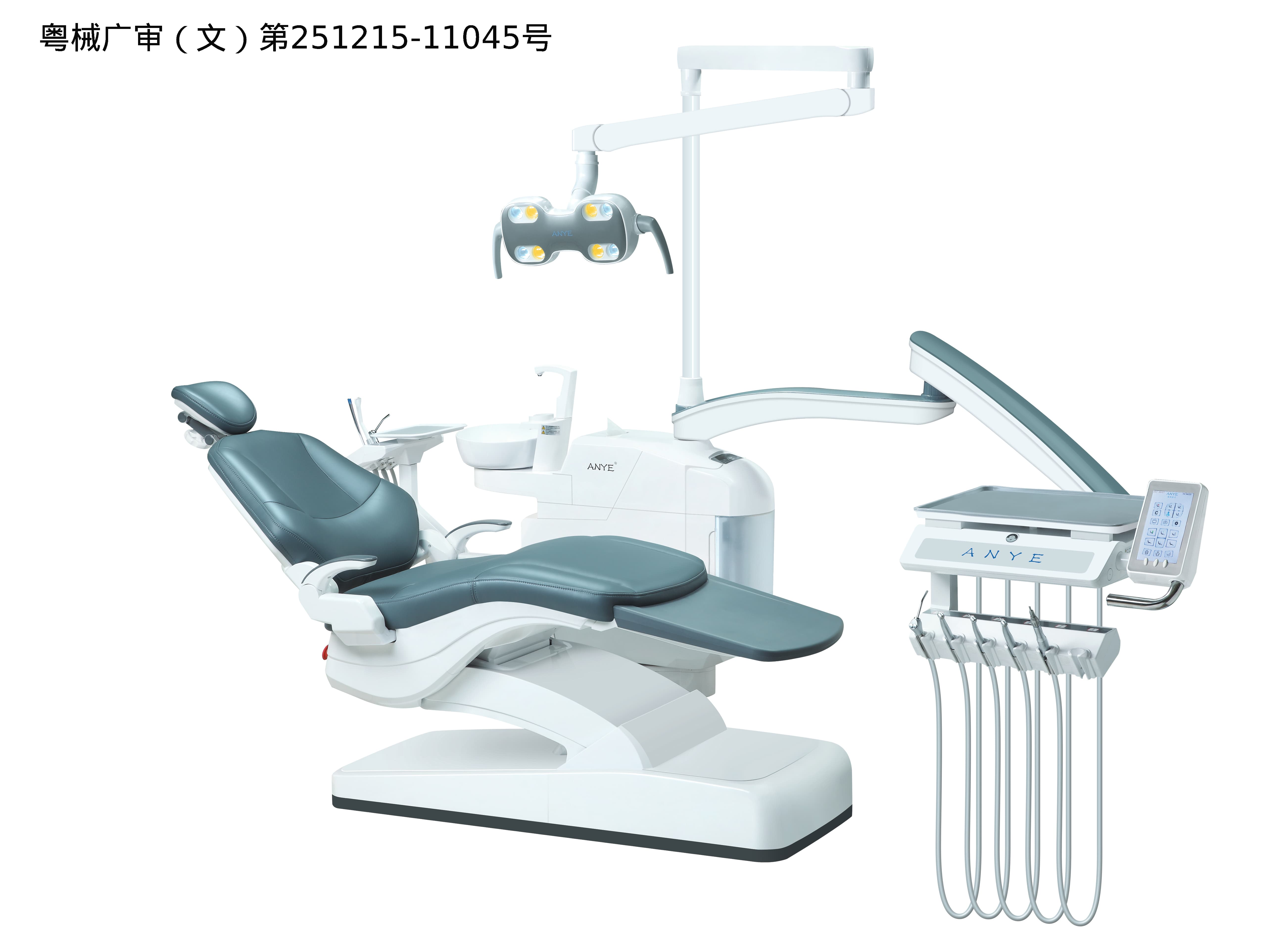

Implant Unit AY-215A1

Implant Unit AY-215A1

Simple and efficient implant unit, provide with large and comfortable backrest especially for long periods lying, and the side part is movable to maximize the operating space.




AY-215A1 is a fourth-generation high-end professional dental unit based on comfort and technology. The product is designed according to market demand to meet the clinical professional needs of medical staff and provide patients with wide and comfortable seats. It is in line with the ergonomic streamline design, can automatically cooperate with the cushion movement to form an elevation angle, and has a stronger sense of back support. The intimate design of AY-215A1 can bring more comfort to patients.




Product details:


A11

Detached Spittoon


The spittoon is detachable for easy cleaning, it can be rotated by 90°for patients to spit.



A12

Liftable Stainless Steel Instrument Tray


Electric dental chair control system,
- With 18 button on the main key board,
- 9 memories position control,
- one-key preset working position,
- Independent handpiece water adjustment in front
Greatly improving the doctor's work efficiency. The stainless steel instrument tray can be wiped and disinfected.




A13

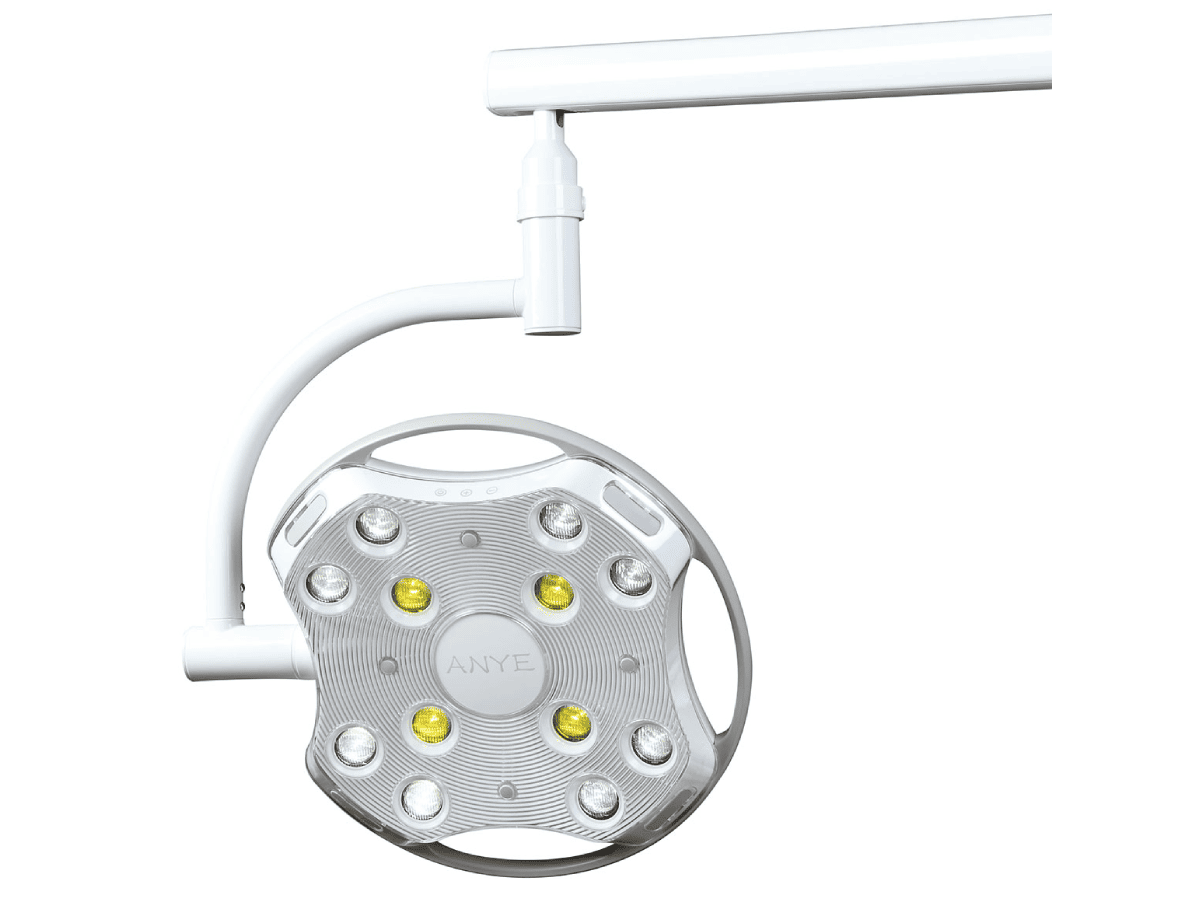

LED Operating Light


12-hole brand lamp beads, high brightness, good shadowless effect, long service life of the lamp beads with manual induction adjustment.



140x140

Optional with camera function


Sony camera sensor, full HD 1080P, auto focus, focus range 450mm~1000mm, up to 30x optical zoom

Diagnosis and treatment application

Multi-screen connection, real-time display, dental multi-diagnosis and treatment, the first choice for treatment.


Teaching application

Connected to a computer, real-time multi-screen display can be realized to achieve the purpose of multi-disciplinary teaching.

High-definition dental camera box


With recording, snapshot, and immediate playback functions
Timely video during live broadcast or video playback;
Take screenshots during playback;
Take screen shots during the video playback;
Search time during video playback;

Editable recorded videos
Video segmentation and merging can be performed in editing mode;
Watermark can be added to the video;


A14

Luxury Backrest


The stainless steel backrest inside is made of 4mm steel plate laser cutting, which is solid and stable. Its greatly improves the comfort.

A15

Flushing and Water Supply


The water supply nozzle is higher 2cm above surface of the spittoon tank to avoid cross-infection caused by water splashing on the water supply nozzle during  flushing. The water supply seat can be detached for cleaning



A16

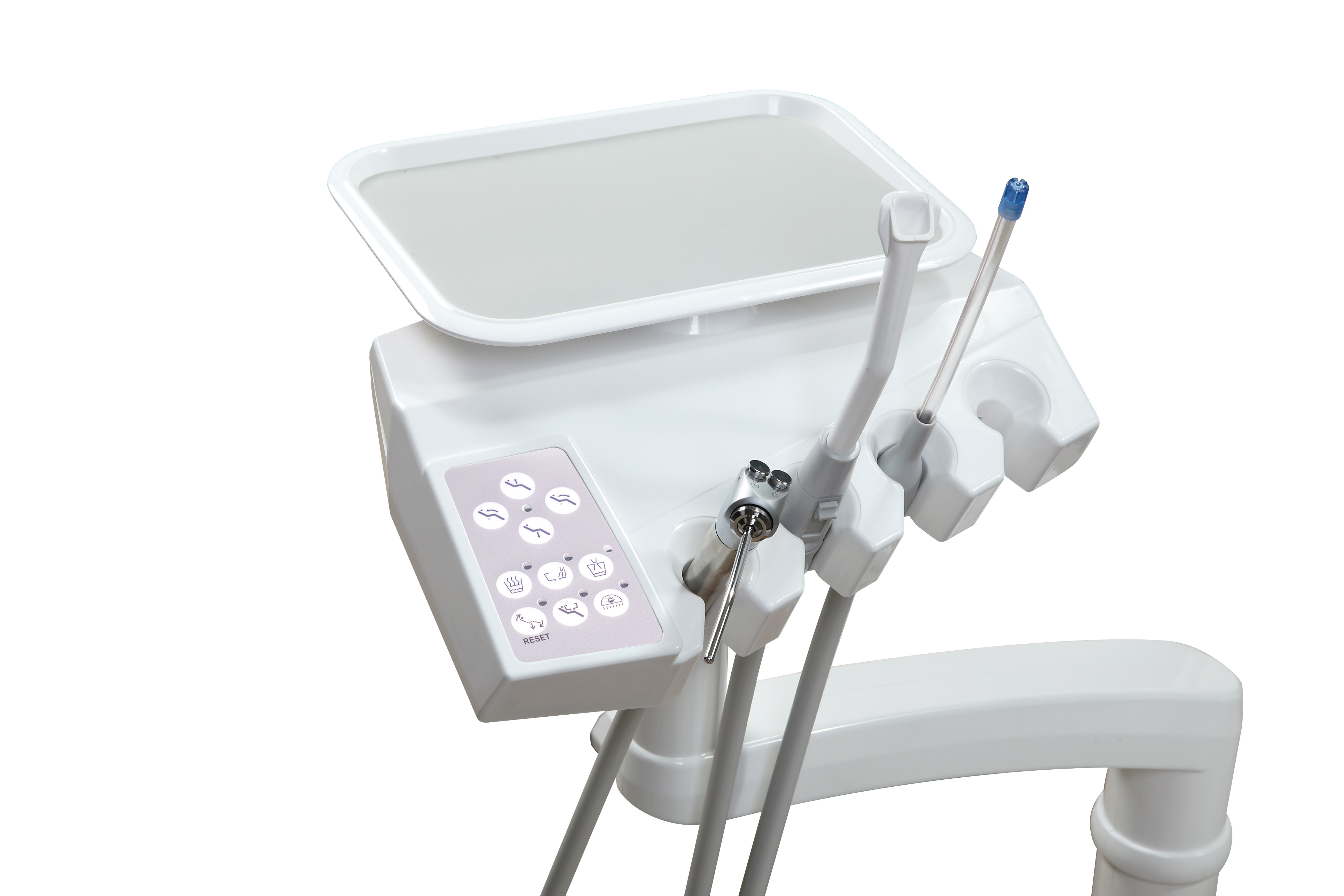

Assistant Control System


With multi-functional control panel, it is convenient for assistant to use the common functions of dental chair and assist dentists to improve work efficiency.



A17

Rotatable Armrest


The armrest can be rotated horizontally, which is convenient for patients to lie up and down the chair.



A18

Foot Pad


The Foot pad is made of PU material that the patients do not need to take off their shoes for treatment, which is convenient for cleaning.




A19

Chair Frame


The chair frame is made of 4mm metal cutting by the laser machine. Its with precise dimensions which is the highest standard in the dental unit industry.



A10

Movable Trolley Instrument Tray (Lifting)


The trolley instrument tray has 9 memory positions, 6 handpiece holder, with central suction and an independent handpiece water regulating valve. Instrument tray is made of stainless steel and the surface can be deeply disinfected. It can place the equipment needed for treatment. Instrument tray size: 580*370mm.




Rotatable side box

Rotatable Side Box


The side can be rotated 180°and move in a wide range, which can easily locate the required position and maximize the space of assistant.




Dentist Stool

Dentist Stool


Dental stool C with 360°noiseless universal wheel, it can be lifting and pitching adjustment.



A113

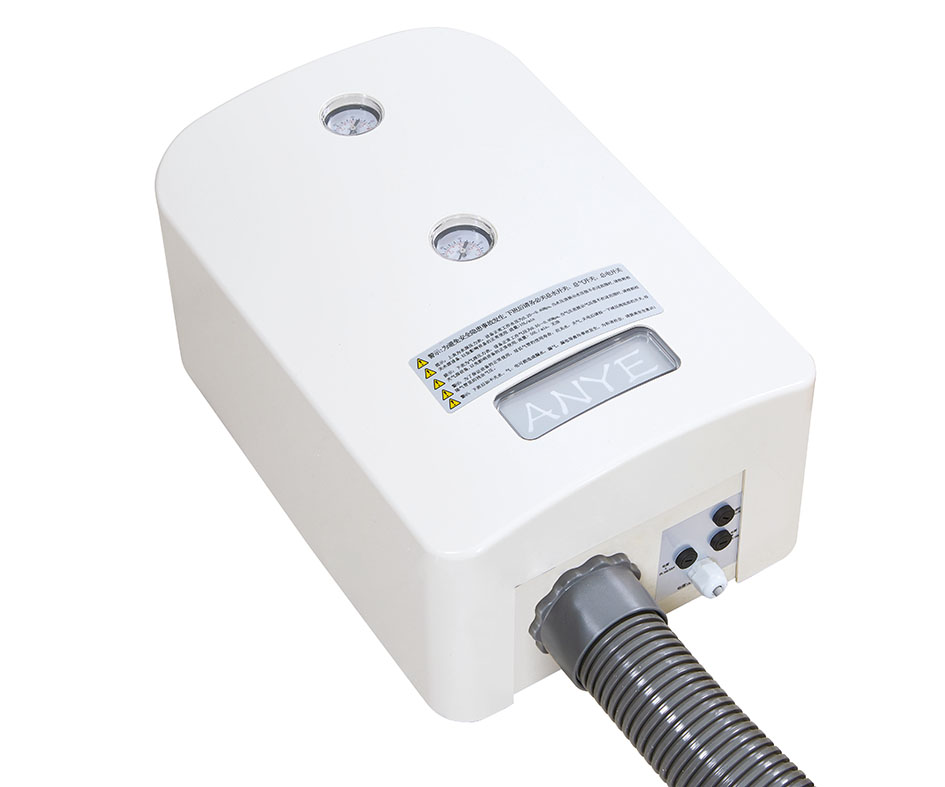

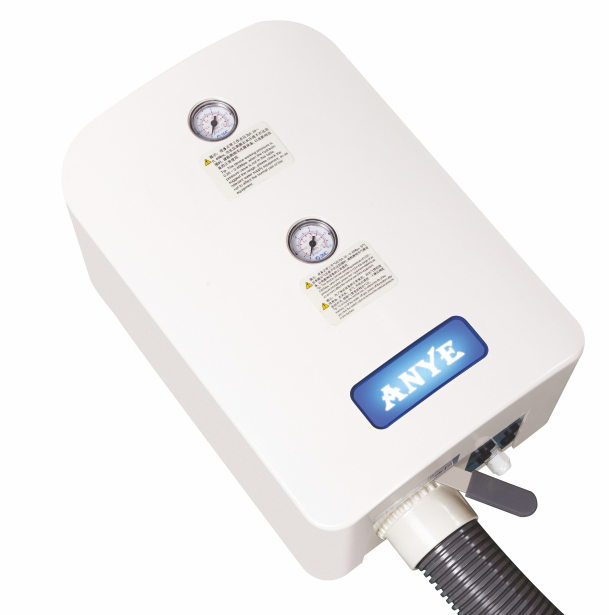

Junction box


With main switch of water, electric and air. The barometer is on the top of the junction box which is convenient for observing the water and air status of the whole machine.



A114

Multifunctional Foot Pedal


-With self-locking function,
- Control up and down of dental chair, backrest position, cuspidor flushing and water supply.



140x140

Cast aluminum lamp holder


Cast aluminum lamp holder, high flexibility, long service life (after 100,000 fatigue tests).



Key parts:

4mm high quality steel is cut by laser cutting machine

4mm High Quality Steel Is Cut By Laser Cutting Machine

All ABS Plastic by Injection Moulding

All ABS Plastic By Injection Moulding

import medical water & air tube

Import Medical Water & Air Tube


Import member and valve

Import Member And Valve

import motor

Import Motor

Import Pressure Reducing Valve

Import Pressure Reducing Valve

import Solenoid Valve

Import Solenoid Valve


Power Supply With Protection System

Power Supply With Protection System

Self-designed PCB System, Import Chip

Self-designed PCB System, Import Chip

Technical Parameters:

Power Voltage 220V-50HZ/60HZ
Motor Voltage 24V
Air Pressure 0.5MPa-0.8MPa
Water Pressure 0.2MPa-0.4MPa



Configutation:

24V DC Motor
Movable Instument Tray
3-Way Syringe(Assistant)Cold Water
Assistant Operating Control System
Strong Suction Tube(Negative Pressure)
Weak Suction Tube(Negative Pressure)
Air Brak Instrument Tray(Electric)
Emergency Switch(On/Off)
Auto Spittoon Flush And Cup Filler Control System
Detachable 90°Moveble Spittoon
Chair With Self-lock Function
Multifuncitonal Foot Pedal
Keypress Function For Spitting
Control Box With Main Switch(Water/Electric/Air)
Implant Dental Light
9 Memories
Dentist stool C
Movable Cabinet
Ceremic Spittoon
Synchronized
Third Generation Chair Frame Compensation System
Environment Leather
Water One-way Valve(Anti-backflow Function
Stainless Instrument Tray

Opitons


8 Eyes operating light (whiteyellow)

8 Eyes operating light (whiteyellow)

4 Eyes operating light (white)

4 Eyes operating light (white)

lmplant operating light (white)

lmplant operating light (white)

Reflected operating light (whiteyellow)

Reflected operating light (whiteyellow)


Dentist stool C

Dentist stool C

Dentist stool A

Dentist stool A

Luxury Top-mounted instrument tray

Luxury Top-mounted instrument tray

Top-mounted instrument tray

Top-mounted instrument tray


Multifunctional foot pedal

Luxury cast aluminum multifunctional pedal

Foot pedal

Cast aluminum multifunctional pedal

Monitor holder

Cast aluminum peda

Monitor holder



Curing Light

Foot pedal

Curing Light

Monitor holder

Scaler



Colors Available:

Standard: PU

Eco-friendly leather EmeraldSky Blue
Eco-friendly leather Orange RedLight Blue
Light GrayDark Blue
lvoryLight Gray
OrangeGreen
Eco-friendly leather EmeraldGreen
Eco-friendly leather Orange RedYellow
Light GrayOrange
lvoryRose Red
OrangeIvory









Optional: Leather

Sky BlueEmerald
Light BlueOrange
Dark BlueChinese Red
Light GrayLight Green
GreenBark Brown
Eco-friendly leather EmeraldSapphire Blue

YellowDark Grey
OrangeAmber Brown
Rose RedOlive Green
lvoryRose Red
