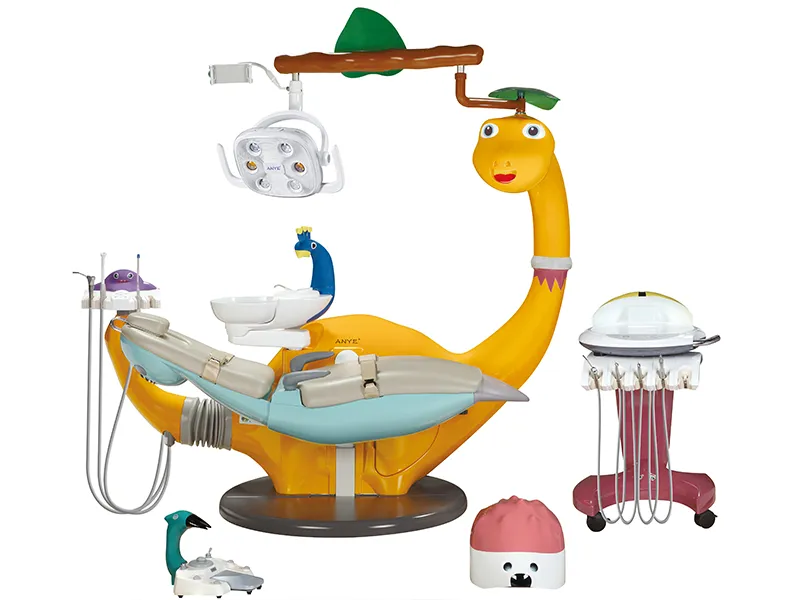

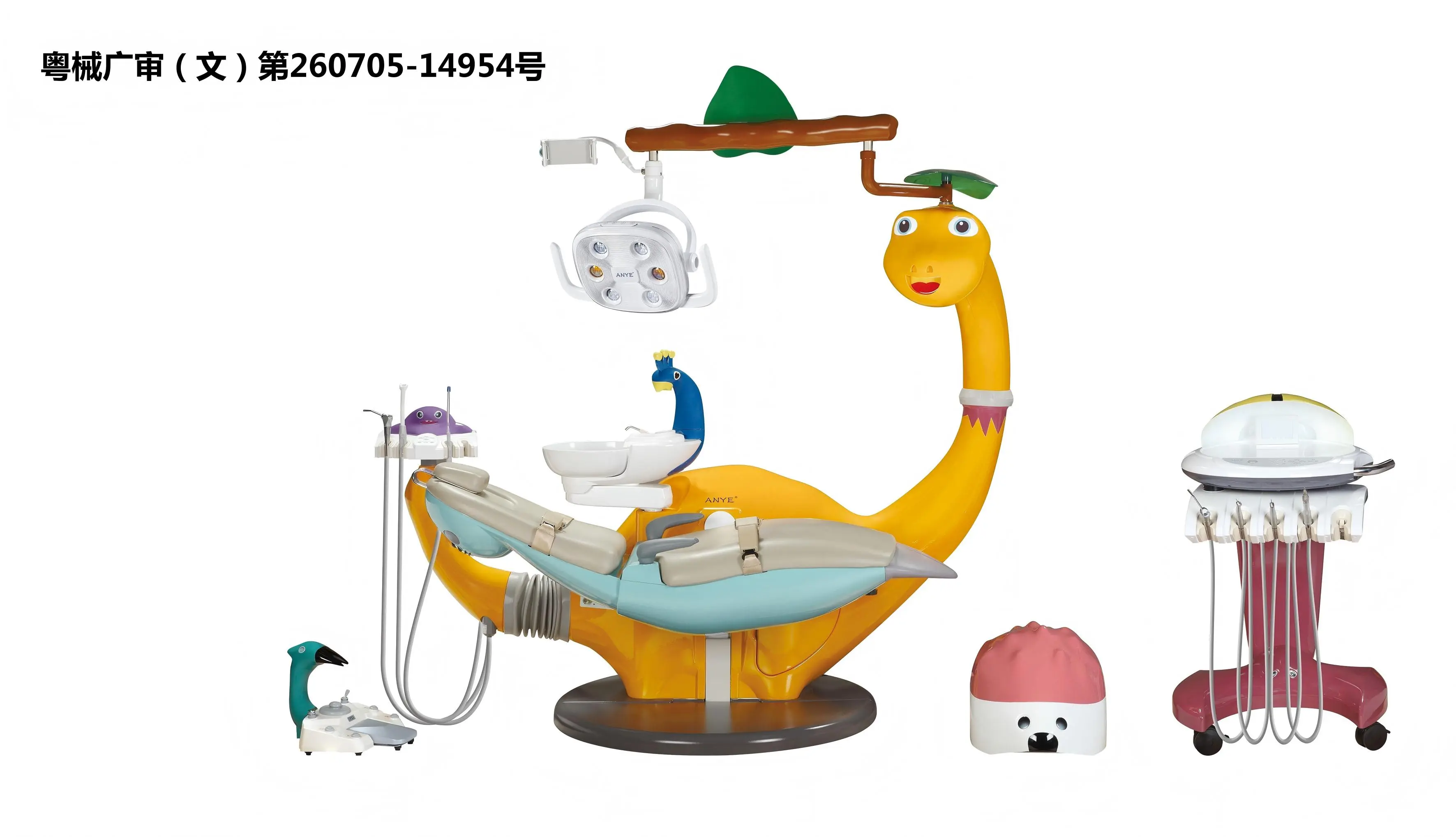

Kids Unit AY-215D3
A full cartoon chair specially designed for children. The product is designed according to market demand to meet the clinical professional needs of dentist and provide a relaxing and enjoyable environment for children as the goal. It makes full use of ergonomic and high-strength precision technology to produced a high-end unit. The maximum weight of kids chair is 135KGS and the height is 1.2M.
![D3-2](http://v4-upload.goalsites.com/682/1617011425_D3-2.jpg)
Introduction
A full cartoon chair specially designed for children.
The product is designed according to market demand to meet the clinical professional needs of dentist and provide a relaxing and enjoyable environment for children as the goal.
It makes full use of ergonomic and high-strength precision technology to produced a high-end unit.
The maximum weight of kids chair is 135KGS and the height is 1 .2M.
PRODUCT DETAILS
Detachable Spittoon
The spitoon is made of new materials, drop-proof and can be put into sterilizer for disinfection. The peacock design gives children a relaxing and comfortable visual experience. It is detachable for easy cleaning, it can be rotated by 90°for patients to spit.

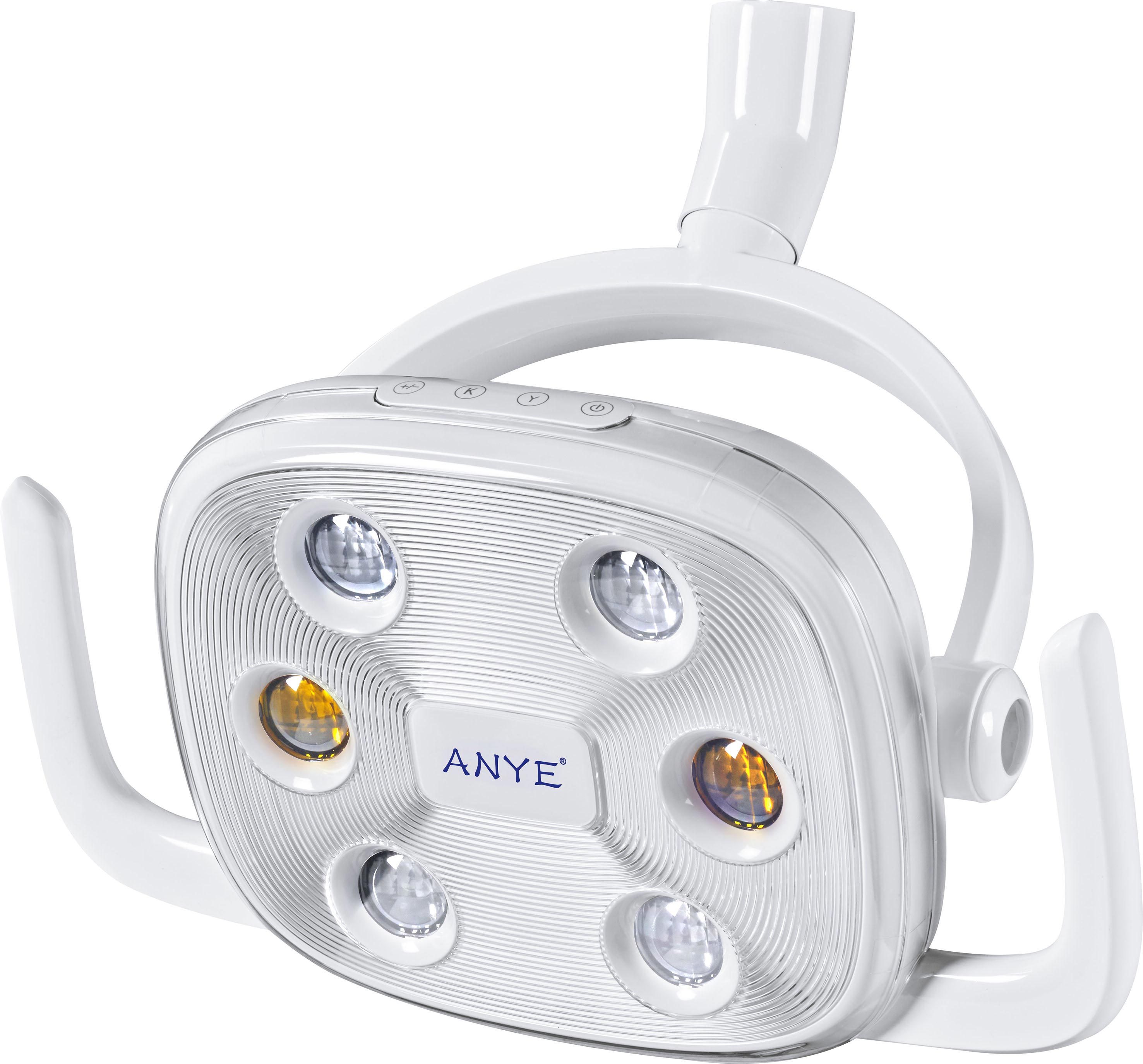

White and yellow light LED lamp
Sensor and manual are available. Color temperature of 5.000k±10% reflected light is more uniform, light source adopts a mixture of yellow and white which is closer to natural light. It is recommended to use yellow light for resin filling to prevent the resin from curing prematurely.
Assistant operating instrument tray
The assistant operating tray with multifunction buttons, it is convenient for assistant to use the common functions of dental chair and assist dentists to improve work efficiency.
Removable Instrument Tray
The removable instrument tray with 360° silent universal wheels which is flexible to move and can meet the needs of dentists from all angles.
Junction Box
Enclosed power design, according to European safety standards, moisture-proof, dustproof and prevent electromagnetic interference. It’s improve the stability and durability of the prower.
With main switch of water, electric and air, the barometer is on the top of the junction box which is convenient for observing the water and air status of the whole machine.
Control System with Memory Function
Electric dental chair control system with 16 control buttons, 3 memories, a button preset working position, which greatly improves the dentist's work efficiency.
Multifunctional Foot Pedal
The pedals have self-lock function and equipped with control of rise and down, backrest forward and backward, blowing, flushing and water supply, operating lamp on/off and handpiece control.
Dentist Stool C
Dental stool C with 360°mute universal wheel which is flexible to move, cushion lifting, backrest pitching. It’s provides the dentist with good support for the haunch and waist.
Foot Pad
The foot pad is made of die-casting, it’s easy to clear. Patients do not need to take off their shoes for treatment.
Emergency safety Switch
This bottom if the chair breaks down or in a medical accident, the water, air and electricity of whole unit will stop working.
Water Transfer Switch
Water storage bottle is switched to supply water when the water transfer switch is pressed, and the water storage bottle gas switch is turned on at the same time.
Safety Belt
Effectively prevent children from shaking.
Backrest Safety Lock
The backrest will automatically return and the seat will automatically rise when encounter resistance during the lying down process, it will be avoid obstacles, and provide more security.
![4mm high quality steel is cut by laser cutting machine](http://v4-upload.goalsites.com/682/1621991186_4mm high quality steel is cut by laser cutting machine.jpg)
4mm High Quality Steel Is Cut By Laser Cutting Machine

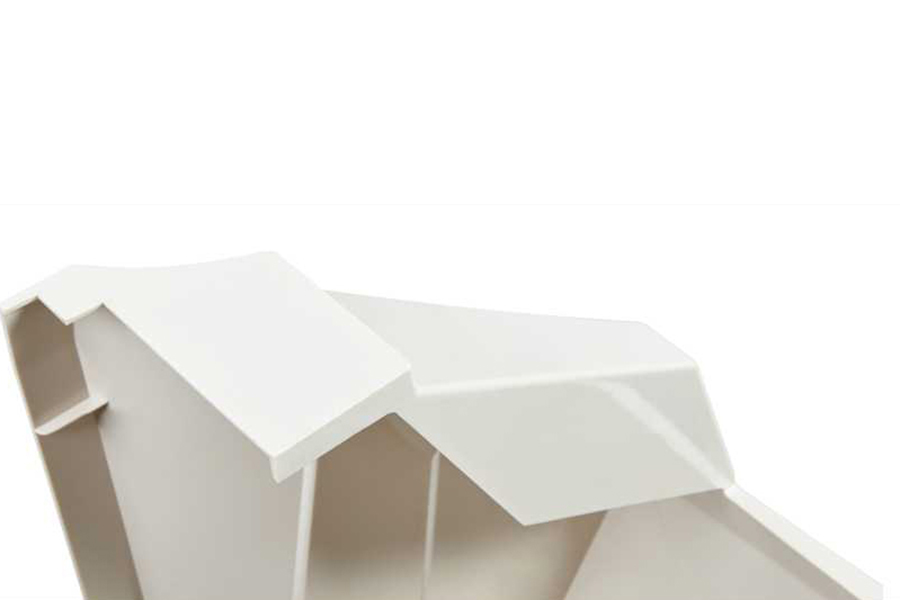

![All ABS Plastic by Injection Moulding](http://v4-upload.goalsites.com/682/1621991201_All ABS Plastic by Injection Moulding.jpg)
All ABS Plastic By Injection Moulding
![import medical water & air tube](http://v4-upload.goalsites.com/682/1621991227_import medical water & air tube.jpg)
Import Medical Water & Air Tube
![Import member and valve](http://v4-upload.goalsites.com/682/1621991273_Import member and valve.jpg)
Import Member And Valve
![import motor](http://v4-upload.goalsites.com/682/1621991293_import motor.jpg)
Import Motor
![Import Pressure Reducing Valve](http://v4-upload.goalsites.com/682/1621991316_Import Pressure Reducing Valve.jpg)
Import Pressure Reducing Valve
![import Solenoid Valve](http://v4-upload.goalsites.com/682/1621991432_import Solenoid Valve.jpg)
Import Solenoid Valve
![Self-designed PCB System, Import Chip](http://v4-upload.goalsites.com/682/1621991527_Self-designed PCB System, Import Chip.jpg)
Self-designed PCB System, Import Chip
Technical Parameters:
Power Voltage | 220V-50HZ/60HZ |
Motor Voltage | 24V |
Air Pressurs | 0.5MPa-0.8MPa |
Water Pressure | 0.2MPa-0.4MPa |
LED Light:
Rated input Voltage | AC12V±10% |
Maximum Power | 15VA |
Light Source | 1 light-emitting diodes (LED) |
Color Temperature | 5,000K ± 10% |
Illuminance | Adjustable from <8,000 to >30,000 |
Configutation:
24V Nolseless Motor |
Water Heater System |
Strong Suction And Weak Suction |
Water Purification System |
Detached Spittoon |
Imported Electromagnetism Valve |
Cuspidor Fiush And Cup Filler |
Removable Main Tray With 3 Memories |
Multifunctional Foot Pedal |
Z-Ray Viewer |
Syringe(Cold/Hot Water) |
Led Light(White/Yellow Color) |
Dentist stool C |
Opitons
![8 Eyes operating light (whiteyellow)](http://v4-upload.goalsites.com/682/1620439051_8 Eyes operating light (whiteyellow).jpg)
8 Eyes operating light (whiteyellow)
![4 Eyes operating light (white)](http://v4-upload.goalsites.com/682/1620439029_4 Eyes operating light (white).jpg)
4 Eyes operating light (white)
![lmplant operating light (white)](http://v4-upload.goalsites.com/682/1620439191_lmplant operating light (white).jpg)
lmplant operating light (white)
![Reflected operating light (whiteyellow)](http://v4-upload.goalsites.com/682/1620439239_Reflected operating light (whiteyellow).jpg)
Reflected operating light (whiteyellow)
![Dentist stool C](http://v4-upload.goalsites.com/682/1620439315_Dentist stool C.jpg)
Dentist stool C
![Dentist stool A](http://v4-upload.goalsites.com/682/1620439334_Dentist stool A.jpg)
Dentist stool A
![Luxury Top-mounted instrument tray](http://v4-upload.goalsites.com/682/1620439358_Luxury Top-mounted instrument tray.jpg)
Luxury Top-mounted instrument tray
![Top-mounted instrument tray](http://v4-upload.goalsites.com/682/1620439381_Top-mounted instrument tray.jpg)
Top-mounted instrument tray
![Multifunctional foot pedal](http://v4-upload.goalsites.com/682/1639190951_21981.jpg)
Luxury cast aluminum multifunctional pedal
![Foot pedal](http://v4-upload.goalsites.com/682/1639191194_15652.jpg)
Cast aluminum multifunctional pedal
![Monitor holder](http://v4-upload.goalsites.com/682/1639209047_未标题-2.jpg)
Cast aluminum peda
![](http://v4-upload.goalsites.com/682/1620439575_Monitor holder.jpg)
Monitor holder
![](http://v4-upload.goalsites.com/682/1620439610_1.jpg)
Curing Light
![Foot pedal](http://v4-upload.goalsites.com/682/1620439660_33.jpg)
Curing Light
![Monitor holder](http://v4-upload.goalsites.com/682/1620439684_3632.jpg)
Scaler
Colors Available:
Standard: PU
![Sky Blue](http://v4-upload.goalsites.com/682/1620440399_Sky Blue.png)
![Light Blue](http://v4-upload.goalsites.com/682/1620440212_Light Blue.png)
![Dark Blue](http://v4-upload.goalsites.com/682/1620439907_Dark Blue.png)
![Light Gray](http://v4-upload.goalsites.com/682/1620440230_Light Gray.png)
![Green](http://v4-upload.goalsites.com/682/1620440463_Green.png)
![](http://v4-upload.goalsites.com/682/1620457622_06.jpg)
![Yellow](http://v4-upload.goalsites.com/682/1620440415_Yellow.png)
![Orange](http://v4-upload.goalsites.com/682/1620440266_Orange.png)
![Light Gray](http://v4-upload.goalsites.com/682/1620440373_Rose Red.png)
![lvory](http://v4-upload.goalsites.com/682/1620440284_lvory.png)
Optional: Leather
![Eco-friendly leather Emerald](http://v4-upload.goalsites.com/682/1620440033_Eco-friendly leather Emerald.png)
![Eco-friendly leather Orange Red](http://v4-upload.goalsites.com/682/1620440087_Eco-friendly leather Orange Red.png)
![Eco-friendly leather Chinese Red](http://v4-upload.goalsites.com/682/1620439959_Eco-friendly leather Chinese Red.png)
![Eco-friendly leather Light Green](http://v4-upload.goalsites.com/682/1620440054_Eco-friendly leather Light Green.png)
![Eco-friendly leather Bark Brown](http://v4-upload.goalsites.com/682/1620439941_Eco-friendly leather Bark Brown.png)
![Eco-friendly leather Sapphire Blue](http://v4-upload.goalsites.com/682/1620440197_Eco-friendly leather Sapphire Blue.png)
![Eco-friendly leather Dark Grey](http://v4-upload.goalsites.com/682/1620439974_Eco-friendly leather Dark Grey.png)
![Eco-friendly leather Amber Brow](http://v4-upload.goalsites.com/682/1620439925_Eco-friendly leather Amber Brow.png)
![Eco-friendly leather Olive Green](http://v4-upload.goalsites.com/682/1620440070_Eco-friendly leather Olive Green.png)
![Eco-friendly leather Rose Red](http://v4-upload.goalsites.com/682/1620440107_Eco-friendly leather Rose Red.png)
